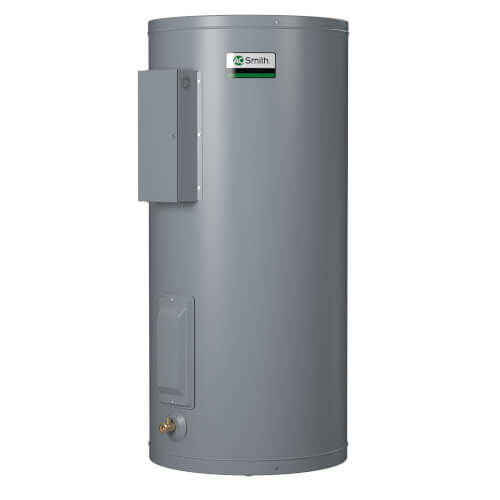

40 Gallon Dura-Power DEL Commercial Electric Water Heater - Lowboy Zoom

40 Gallon Dura-Power DEL Commercial Electric Water Heater - Lowboy


Brand: AO Smith

AO Smith
Qty Price
/ each
On Backorder Expected to Ship in 1-2 Months

This Item is Non-Returnable.

Our standard return policy does not apply to this special-order item. Once ordered, it cannot be returned or cancelled.




Application: Plumbing
Capacity (Gallons): 40
Fuel Type: Electric
Number of Elements: 2
Maximum Kilo Input: 12
Max Pressure (PSI): 150
Height (Inches): 32.25
Diameter (Inches): 24"
Weight (lbs): 135 lbs
Warranty: 3 Yr Limited Tank

Description for AO Smith DEL-40D

Note: When ordering a DEL unit, you must specify the Kilowatts and Voltage you require. Please contact customer service at 1-888-757-4774.

AO Smith Dura-Power Commercial Electric Water Heaters Feature:

  • Glass lined tank - tank interior is coated with glass specially developed by A. O. Smith Ceramic Research for water heater use
  • Elements - zinc plated copper sheaths for longer life. Medium watt density; means lower surface temperature to minimize scale build-up and more surface to heat water.
  • Standard voltages - 120, 277 single phase and 208, 240 and 480V unbalanced three-phase delta; easily converted to single-phase at terminal block (except 208V with 6000 watt elements). Single element heater, single-phase only.
  • Factory installed terminal block -just bring the service to heater and connect to block. Terminal block not supplied on 120V & 277 volt models.
  • Controls - temperature control (adjustable through a range of 110° to 170°F on single element and 120° to 180°F on dual element) and manual reset high temperature cutoff per element (dual element models). Factory wired for non-simultaneous operation; easily converted to simultaneous element operation (three phase models only)
  • CSA certified and ASME rated T&P relief valve
  • Simplified circuitry, color coded for ease of service
  • Anode rod for maximum corrosion protection
  • Cabinet has bonderized undercoat with baked enamel finish
  • Top inlet and outlet openings
  • Drain valve
  • Surface mounted thermostats
  • UL approved field conversion program

PLEASE NOTE: The product weighs 130 lbs. and may require the use of a
lift gate.
If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.

40 Gallon Dura-Power DEL Commercial Electric Water Heater - Lowboy

Q&A: Ask the Questions, share answers

Do you have questions about this product?

Get answers from real customers and in-house experts with AnswerBox.

1 Question | 1 Answer
Displaying question 1
  • 40 Gallon Dura-Power DEL Commercial Electric Water Heater - Lowboy


    I need a minimum 9kw capacity water heater. Does this water heater have (2) 6,000 watt elements which would have a 12kw input?

    Asked on 7/11/2011 by enrico from Tustin, CA

    1 answer



      There is no standard voltage and wattage for this unit, but it can be ordered with two 6,000 watt elements.

      Answered on 8/5/2011 by PexSupply Staff from NY
