Description

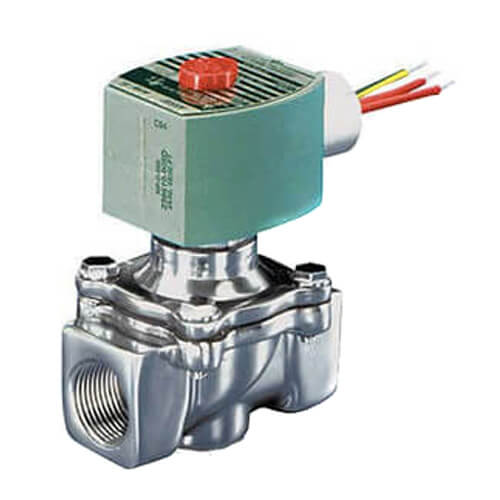

Aluminum valves can be used in both double block and vent gas burners.

Features
  • 2-way normally closed operation
  • For gas pilot or main control of commercial and industrial gas burners
  • Valves provided with 1/8" NPT upstream and
  • Downstream pipe taps with plugs for routine testing
  • Mountable in any position
Valve Response Time: Opening Time: Less than 1 second; Closing Time: Less than 1 second
Read more
Manuals (1)
Specs
Size:
3/8"
Voltage:
24v
Flow Capacity (Cv):
1.2
Fluid Temperature Range:
-40 F to 125 F
Voltage:
120v
Capacity:
64400 BTU
Max Temp (F):
125°F
Position:
Normally Closed
Flow type:
High Flow
Wattage:
6.1
Body Pattern:
2-Way
Features:
NEMA 4
NEMA 4X
×
