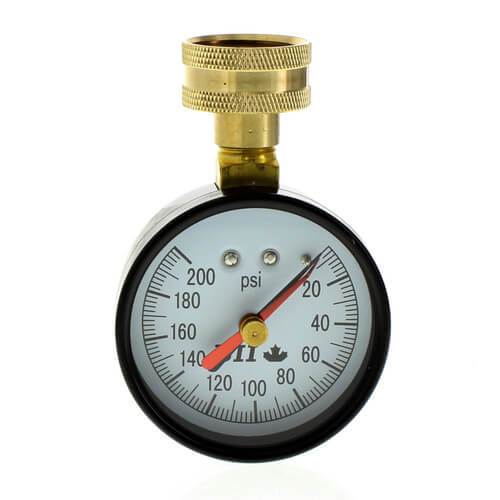

Water Test Gauge, 3/4" Hose Thread

SKU:PG25-WTG200MP

Brand: Boshart

Boshart
Qty Price
$5.95
/ each
$27.75 / box (5 units x $5.55)
In Stock! Ships in 24-48 Hours
(27 Available)

Specs

Dial Size: 2-1/2"
Connection Type: 3/4" NPT
Thread Type: Female
Min Pressure (PSI): 0
Max Pressure (PSI): 200
Increments (psi): 10
Measures: Pressure

Description for Boshart PG25-WTG200MP

Designed to measure and register water system pressure within a system, Ideal for recording the highest pressure reached to determine if a Pressure Reducing Valve (P.R.V.) is required as well as to trouble shoot problems caused by thermal expansion or pressure spikes. The 3/4" hose connection allows for direct connection to a water heater drain valve or hose bibb. The maximum pressure indicator needle can be reset by turning the external knob counter clockwise.

Often used in conjunction with rubber test caps offering a quick and easy way to fill and drain water used in testing cast iron or Schedule 40 plastic pipe often used in sewer, drain and waste water system.

Features:

  • 3/4" brass female hose thread, swivel connection knurled for grip
  • Black steel case w/ acrylic lens
  • Copper alloy internals
  • PSI range single-scale
  • Maximum Pointer to record max. system pressure
