Description

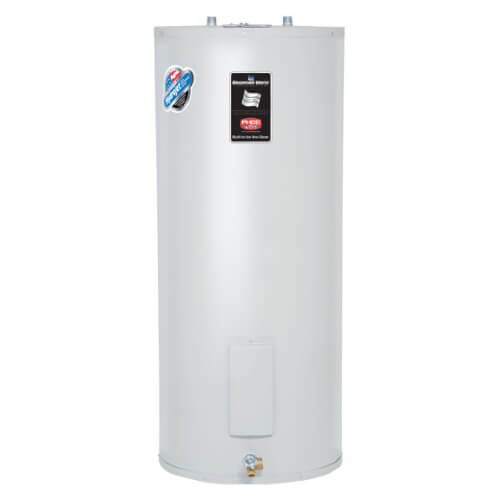

The Bradford White Residential AST Storage Tank features fully automatic controls and the Hydrojet® Total Performance System.

Features:
  • Bradford White is ISO registered to the 9001- standard.
  • Fully automatic controls - fast acting surface-mount thermostat for automatic temperature control.
  • 2" Non-CFC foam insulation - completely covers the side and top of tank, saving energy by retarding loss of heat.
  • Vitraglas® lining - Bradford White storage tanks are protected from the corrosive effects of hot water by an exclusive ceramic porcelain-like coating. The Bradford White high silica Vitraglas® lining provides a tough interior surface for our storage tanks.
  • Protective magnesium anode rod - provides added protection against corrosion for long trouble-free service.
  • Factory installed dielectric waterway fittings - for longer tank life. Easier installation.
  • Factory installed Hydrojet® Total Performance System - Helps prevent sediment build up in tank.
  • T&P relief valve opening - all models have special tapping on top of tank.
  • Brass drain/return valve.
  • Six year limited warranty on steel tank - heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining.
  • Six year limited warranty on parts.
  • Thermal Feet - Unique design provides complete tank isolation. Prevents thermal conduction through bottom of tank.


NOTE: See Product Information/Specifications PDF for information on electrical specifications.
Read more
Specs
Intended Household:
5+ Person
Capacity (Gallons):
80
Height (Inches):
58.875
Diameter (Inches):
24"
Connection Type:
Threaded
Water Connection:
3/4"
Boiler Supply:
3/4"
Boiler Return:
3/4"
Connection Type:
Threaded
Test Pressure (PSI):
300 psi
Working Pressure (PSI):
150 psi
Warranty:
6-Year Limited Tank/ 6-Year Limited on Component Parts
×
