SE Series Energy Recovery Ventilator, 4" Side Ports (up to 1,200 Sq. Ft.) Zoom

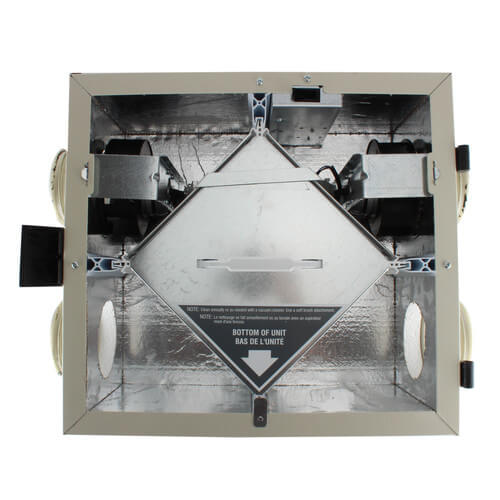

SE Series Energy Recovery Ventilator, 4" Side Ports (up to 1,200 Sq. Ft.)


Brand: Fantech

Qty Price
/ each
$879.90 / box (2 units x $439.95)
Out of StockAllow 7-10 Days to Ship Out


Duct Size: 4"
Hertz: 60
Length (Inches): 18-7/16"
Width (Inches): 10-1/8"
Height (Inches): 17.25
Speeds: 1
Max Airflow (CFM): 78
Min Airflow (CFM): 32
Air Flow Capacity (CFM): 61
Weight (lbs): 25 lbs
Warranty: 7-Year Limited Warranty on Motor
5-Year Limited Warranty on Enthalpic Core
5-Year Limited Warranty on Electrical Components

Description for Fantech SE704N

Energy Recovery Ventilators are complete whole house ventilation systems that incorporate a supply motor and an exhaust motor in one unit. The supply motor draws fresh air in from the outside and the exhaust motor pushes stale contaminated air out . The two air streams are separated by a core. The enthalpic core of the ERV transfers heat and moisture from the incoming air to the outgoing air. The air brought into the living area is cooled and the humidity is reduced for maximum comfort. The load on your air conditioner is less and you save on cooling costs. Energy Recovery Ventilators are designed for warmer, humid climates with longer cooling seasons.


  • Powder coated 24-gauge galvanized steel cabinets
  • Fully insulated with 1" aluminum foil-face high density foam
  • (2) German manufactured motors with backward incline impellers
  • Enthalpy core
  • Super compact size
  • Includes easy-mount wall bracket
  • Single speed ventilation
  • No defrost or drain pan needed
  • No controls needed
  • No balancing required
  • Easy access service door
  • 3' plug-in power cord
  • (2) Electrostatic filters (washable)
  • 61 CFM (29 L/s) at 0.3" w.g. or 50 CFM (24 L/s) at 0.4" w.g.
  • 4" side port duct connections
  • Unit can be installed in any position
Note: This model has no defrost and is not recommended for climates that experience freezing conditions for long periods.

SE Series Energy Recovery Ventilator, 4" Side Ports (up to 1,200 Sq. Ft.)
