Description

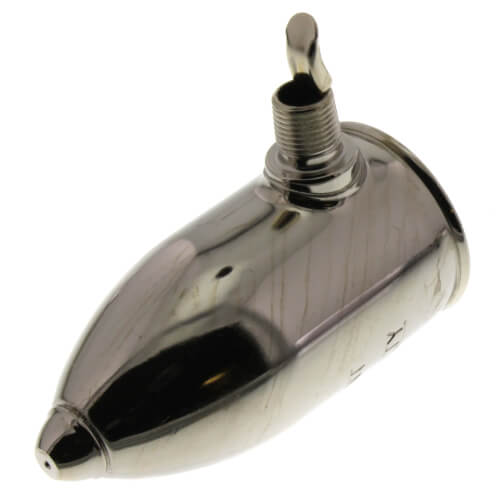

Air Valve (non-vacuum)
  • Float-type vent
  • Single non-adjustable port
  • Meets Federal Specification WW-V-151 for Type 1
    Non-Adjustable Valves
  • 1⁄8" NPT angle connection
  • Maximum operating pressure 11 psig (0.8 bar)(Drop away pressure - maximum pressure against which the vent can open).
  • Maximum pressure 15 psig (1.0 bar)
Read more
Manuals (2)
Specs
Application:
Radiator Vent
Size:
1/8"
Type:
Non-Vacuum
Float-type Vent
System Type:
Steam
Max Pressure:
15 psig
Max Operating Pressure:
11 psig
Mount:
Angle
Adjustability:
Non-Adjustable
Material:
Steel
Body Pattern:
Angle
Thread Type:
Male
Temperature Range (F):
140°-240°F
Max Temp (F):
240°F
Min Temp (F):
140°F
Thread Size:
1/8"
×
