Description

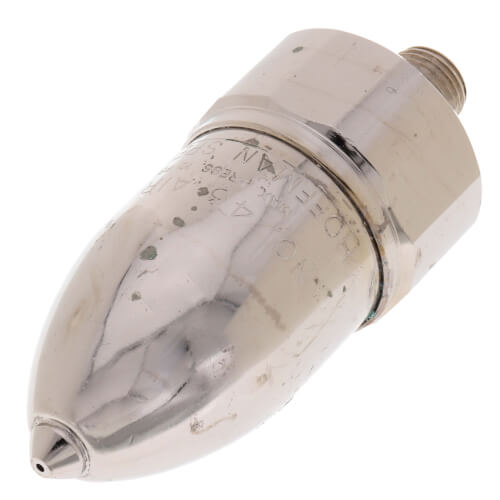

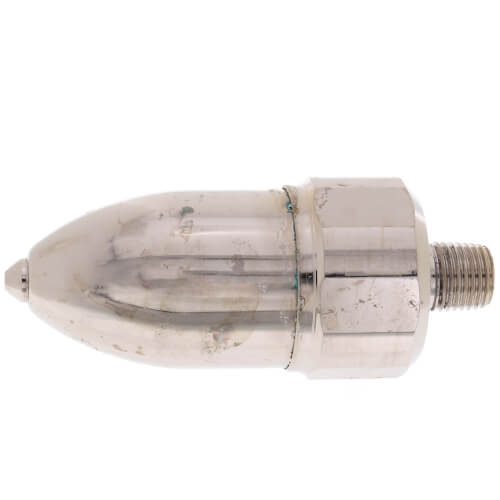

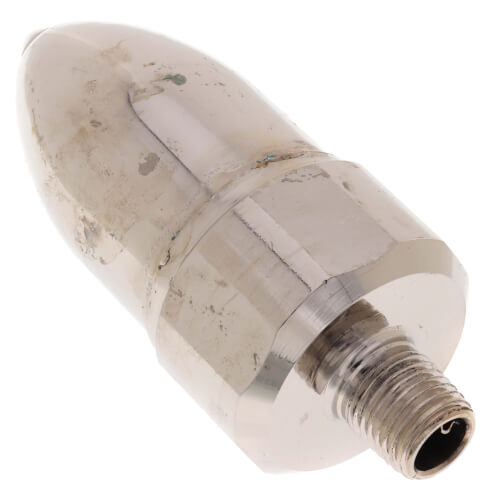

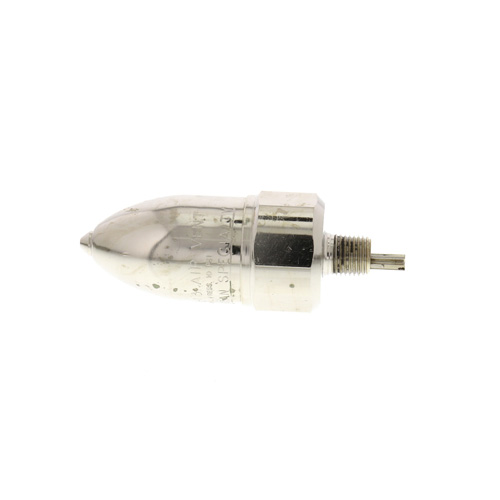

Air Valve (non-vacuum)
  • Single non-adjustable port
  • For small steam systems
  • Telescopic siphon tube with angle cut assures drainage
  • 1⁄4" NPT straight shank
  • Maximum operating pressure 6 psig (0.4 bar)(Drop away pressure - maximum pressure against which the vent can open).
  • Maximum pressure 10 psig (0.7 bar)
Read more
Manuals (2)
Specs
Application:
Convector Vent
Size:
1/4"
Type:
Non-Vacuum
System Type:
Steam
Max Pressure:
10 psig
Max Operating Pressure:
6 psig
Mount:
Straight
Adjustability:
Non-Adjustable
Material:
Steel
Body Pattern:
Straight
Thread Type:
Male
Temperature Range (F):
140°-240°F
Max Temp (F):
240°F
Min Temp (F):
140°F
Thread Size:
1/4"
×
