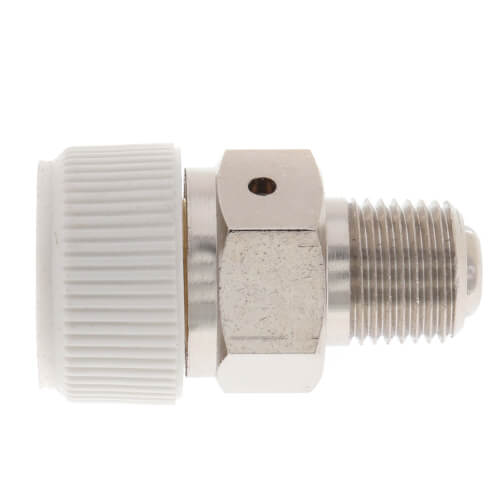

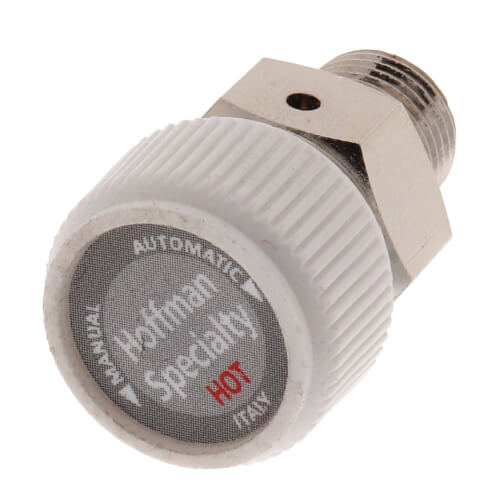

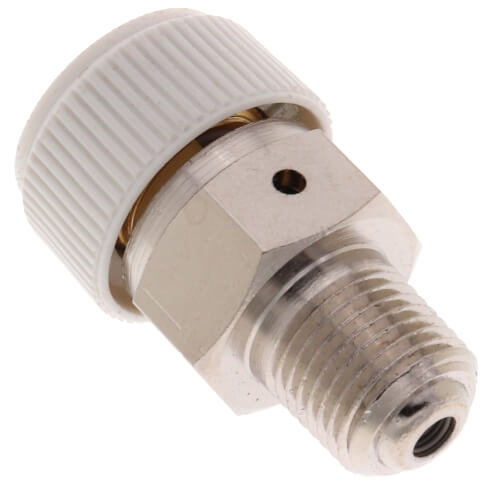

508, 1/8" Straight Steam Convector Air Valve Zoom

508, 1/8" Straight Steam Convector Air Valve

SKU:401475

Brand: Hoffman

Hoffman
Qty Price
$8.25
/ each
$39.75 / box (5 units x $7.95)
In Stock! Ships in 24-48 Hours
(4739 Available)
0

Resources

Specs

Application: Convector Vent
Size: 1/8"
Type: Disc-type Vent
Non-Vacuum
System Type: Steam
Max Pressure: 15 psig
Max Operating Pressure: 50 psig
Mount: Straight
Adjustability: Non-Adjustable
Material: Steel
Thread Type: Male
Temperature Range (F): 140°-240°F
Max Temp (F): 240°F
Min Temp (F): 140°F
Thread Size: 1/8"

Description for Hoffman 401475

Air Valve (non-vacuum)

  • Disc-type vent
  • Built-in Check Valve
  • For automatic venting of convectors and radiators
  • Can be disassembled to clean without removing from line
  • 1⁄8" NPT straight shank
  • Maximum steam pressure of 15 psig (1.0 bar)

508, 1/8" Straight Steam Convector Air Valve

REVIEW SNAPSHOT®

by PowerReviews
Hoffman508, 1/8" Straight Steam Convector Air Valve

4.5

(based on 2 reviews)

Ratings Distribution

  • 5 Stars



    (1)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

Reviewed by 2 customers

Sort by

Displaying reviews 1-2

Back to top


5.0

I would buy this product again.

By Bob the fixer

from Queens, NY

Verified Buyer

Pros

    Cons

      Best Uses

        Comments about 508, 1/8" Straight Steam Convector Air Valve:

        This valve is the only one that fits on my baseboard steam radiator and works.

        • Primary use:
        • Personal

        4.0

        Good replacement

        By Exzach

        from San Francisco CA

        Verified Buyer

        Pros

          Cons

            Best Uses

              Comments about 508, 1/8" Straight Steam Convector Air Valve:

              Due to space restraints, I used to use the Hoffman 100 air valve on my steam radiator. This Hoffman 508 replaces the discontinued model 100. It functions reliably and is easy to use and adjust.

              • Primary use:
              • Personal

              Displaying reviews 1-2

              Back to top

              Q&A: Ask the Questions, share answers

              Do you have questions about this product?

              get answers from real customers and in-house experts with AnswerBox.

              4 Questions | 7 Answers
              Displaying questions 1-4
              • 508, 1/8" Straight Steam Convector Air Valve

                Q:

                Is this used for hydronic (hot water) baseboards?
                Asked on 10/1/2012 by Nick

                3 answers

                • VERIFIED BUYER

                  A:

                  Yes. It's not obvious from the general description of the product but if you look up some of the specifications and read the installation instructions, it's perfectly acceptable for bleeding air from hot water based hydronic systems. And American made and repairable!

                  Answered on 10/1/2012 by Anonymous
                • VERIFIED BUYER

                  A:

                  Hi,
                  I had not seen this kind of air valves before I bought it either and since its description was saying it is for a steam convectors I decided to try it for my steam cast iron ceiling radiator. Since the valve was small and I did not have enough space to install normal steam air valve it worked fine for my purpose.
                  As much as I could find out about it (from the Hoffman's link below)
                  http://completewatersystems.com/product/convector-steam-vents/
                  this valve is a Disc-type vent as opposed to float type vent(the way most of the steam vents are). In other words it uses different thermodynamics principle to open and close thus letting the air from the steam radiators/convectors out so the steam can get in it and heat.
                  That being said it seems it is designed to work with steam systems which work at a higher temperature than the hot water systems. It is probably tuned to close when that high temperature steam gets to it, but it might not work well with hot water as its lower temperature might not close it properly and might leak water out.
                  That is the best opinion I can offer.

                  Answered on 10/1/2012 by Anonymous
                • VERIFIED BUYER

                  A:

                  yes, it is used for hydronic systems to bleed air out of the system. Also used on steam systems.
                  Check and set cap position for each respective system.

                  Answered on 10/1/2012 by Anonymous
              • 508, 1/8" Straight Steam Convector Air Valve

                Q:

                Is this a comparable or better replacement for the Hoffman model 500?
                Asked on 12/4/2011 by Anonymous from New York, NY

                2 answers

                • A:

                  The Hoffman 508, 1/8 Straight Steam Convector Air Valve is a better replacement valve

                  Answered on 12/8/2011 by Anonymous from None
                • CUSTOMER CARE

                  A:

                  The 508 is the replacement for the obsolete Model 500 valves.

                  Answered on 12/5/2011 by PexSupply Staff from NY
              • 508, 1/8" Straight Steam Convector Air Valve

                Q:

                CAN THIS BE USED ON GLYCOL SYSTEMS
                Asked on 2/16/2011 by Anonymous

                1 answer

                • CUSTOMER CARE

                  A:

                  Yes, it can.

                  Answered on 2/16/2011 by PexSupply Staff from NY
              • 508, 1/8" Straight Steam Convector Air Valve

                Q:

                Can this #508 be installed in the horizontal position?
                Asked on 1/28/2011 by Anonymous

                1 answer

                • CUSTOMER CARE

                  A:

                  Yes. It can be installed either vertically or horizontally.

                  Answered on 1/31/2011 by PexSupply Staff from NY
              Displaying questions 1-4

              Do you have a question about this product?
