Description

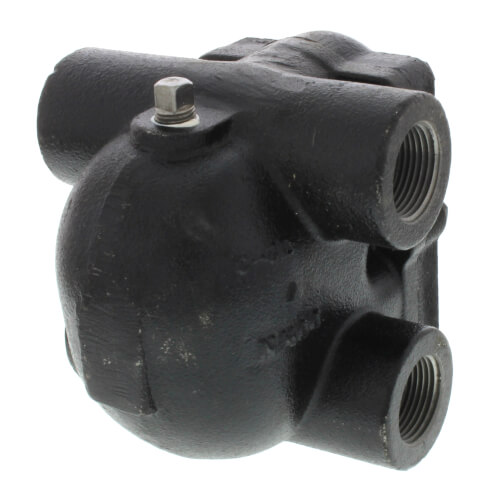

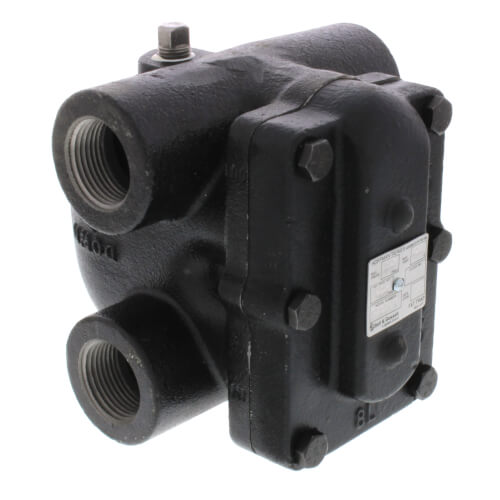

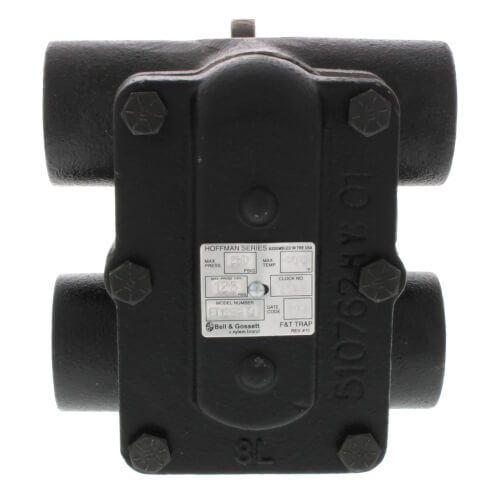

Series H BearTrap

Series H Float and Thermostatic Steam Traps feature universal 4 - port tappings (2 inlets, 2 outlets) that provide versatility to allow easy piping and system monitoring

Features:
  • Stainless steel internal components
  • Resistant to water hammer and corrosion
  • Below condensate level seat design prevents steam leakage
  • Maximum operating pressure: 175 psi for all models
  • Rugged thermostatic element eliminates air binding
  • Maximum body design pressure (250 psig for 3/4" to 1-1/4" models and 175 psig for 1-1/2" to 2" models)
  • Maximum temperature - 406°F for 3/4" to 1-1/4" models; 377°F for 1-1/2" to 2" models
Read more
Specs
Size:
1"
Max Temp (F):
406°F
Seat Differential Rating:
125 psi
Series:
Series H
Material:
Cast Iron
Max Pressure (PSI):
175
Connection Type:
Threaded
Warranty:
3-Year Warranty
Product Type:
Float & Thermostatic Trap
×
