Description
Provides operating control with automatic limit protection for pressure systems up to 300 psi (2068 kPa)

Benefits:
  • Use with steam, air, noncombustible gases, or fluids non-corrosive to pressure sensing element
  • Models have snap-acting switching to open or close a circuit on pressure rise
  • Have adjustable differentials

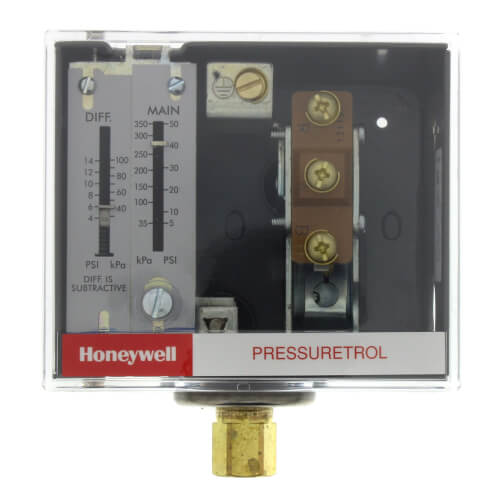

  • Adjustments are made by screws on top of case

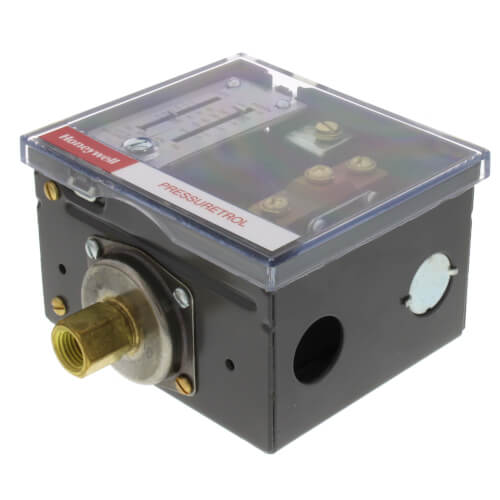

  • Mount using 1/4" -18 NPT internal pipe threads or surface mount through base of case
  • Ground screw terminal

    Specifications:
  • Application: Provide control of steam, air, non-combustible gases or non-corrosive fluids
  • Operating Range: 5 to 50 psi
  • Switching Action: SPDT snap action, make R-W, break R-B on pressure rise
  • Sensor Element: Stainless Steel diaphragm
  • Pipe Connections, Main or High Pressure:1/4" NPT internal thread
  • Differential Type: Subtractive
  • Switch Contact Ratings (120 Vac): 8.0 AFL, 48.0 ALR, 10.0 A resistive
  • Maximum Sustained Operating Pressure (psi): 85 psi
  • Pressure Differential (psi) 6 to 14 psi
  • Temperature Range: -35 F to +150 F
  • Electrical Connections:Screw terminals
  • Read more
    Manuals (1)
    Specs
    Min Pressure (PSI):
    5
    Max Pressure (PSI):
    85
    Pressure Differential:
    6 psi to 14 psi
    Max Pressure Differential (PSI):
    14
    Min Pressure Differential (PSI):
    6
    Dimensions (WxHxD):
    4-1/2" x 4-31/32" x 2-3/4"
    Operating Range (psi):
    5 psi to 50 psi
    Mount:
    1/4" NPT internal thread
    Max Operating Pressure:
    50 psi
    Min Operating Pressure (PSI):
    5
    Switch Operation:
    Auto Recycle
    ×
