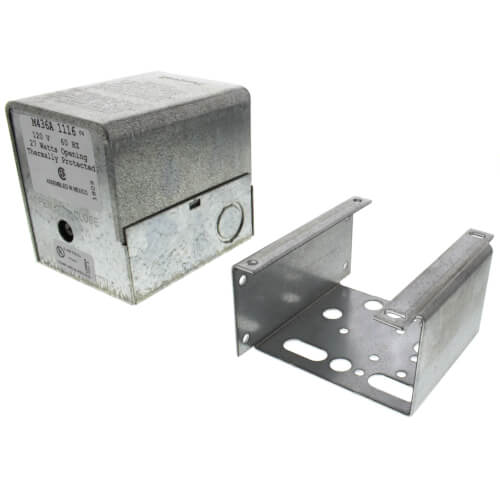

Description
Spring return motors for two-position back draft, outdoor air changeover, zone, or minimum position damper control.

Features
  • Operate outdoor air dampers for combustion or makeup air in residential and light commercial applications.
  • Operate changeover dampers for heating and cooling systems.
  • Operate minimum position dampers for ventilation and similar applications.
  • Include internal SPDT switch for controlling auxiliary equipment, additional motors, or to provide a burner interlock switch.
  • Spring returns motor to start position on power failure.
  • Drive shafts located on both sides of motor.
  • Adjustable auxiliary switch for cascading motors or operating auxiliary equipment.
  • Thermal breaker for overload protection during lifting stroke or if motor stalls.

Read more
Specs
Product Type:
Actuator
Actuator Type:
Two Position
Voltage:
120v
Torque:
20 lb-in
Fail Safe Mode:
Spring Return
Temperature Range (F):
32 to 125 F
Mount:
Foot
Air Connections:
1/8" NPT
×
