Description

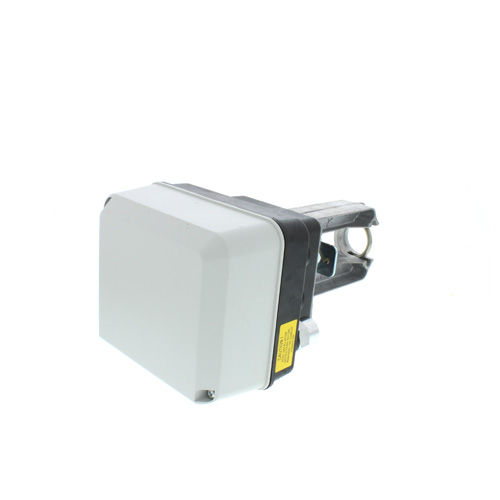

Direct Coupled Globe Valve Actuators provide floating or modulating control of chilled water, hot water, or steam, and mount directly on VGF series, V5011, and V5013 valves. These Non-Spring Return Actuators will operate 1/2 to 6 inch valves.

Features
  • Easy and quick installation on valves with 1 3/8" bonnet and 3/4" stroke.
  • No separate linkage required.
  • Conduit connector standard.
  • No adjustments required on linkage.
  • Accurate valve positioning.
  • Low power consumption.
  • High close-off ratings.
  • Force limiting end switches.
  • Internal manual operator.
  • Synchronous motor.
  • Maintenance free.

Specifications
  • Actuator Type: Valve
  • Application Type: HVAC
  • Control Signal: 2 to 10 Vdc
  • Number of Internal Auxiliary Switches: 0
  • Mounting: Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves (3/4" or 20mm stroke)
  • Frequency: 60 Hz, 50 Hz
  • Manual Operation: Manual override winding
  • Timing, Nominal Driving @ 60 Hz (sec): 90 Seconds
  • Temperature Range, Ambient (F):14 to 122F
Read more
Specs
Actuator Type:
Proportional
Floating
Fail Safe Mode:
Spring Return
Manual Oper.:
Manual override winding
Voltage:
24v
24v
Timing:
90 Seconds
Torque:
135 lb-in
×
