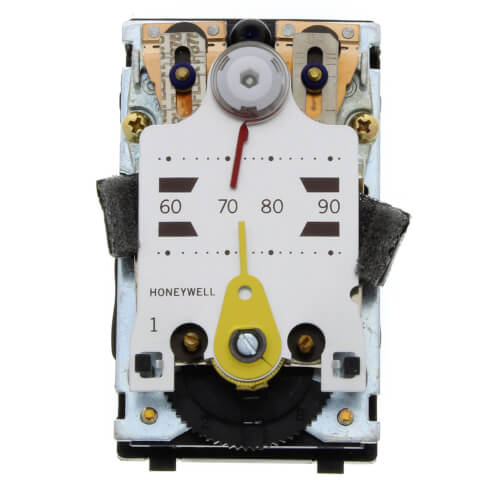

Description for Honeywell TP9630A1004
Pneumatic thermostat for proportional control of pneumatic valves and actuators with one- or two-pipe systems. Available with two cover options, the TP9600 is not only affordable and easy to install, but it controls temperature with the reliability that only Honeywell can provide.
- TP9600 delivers the Honeywell TP970s unparalleled sensing and control.
- Redesigned models fit your high-volume pneumatic applications.
- Backplate mounts quickly.
- Thermostat snaps onto backplate.
- Cover is mounted and locked into place with concealed setscrews.
- Attractive Euro-contoured design comes with choice of two cover options.
- Neutral taupe color blends with today’s commercial interiors.
- Adapter kits are available to retrofit most pneumatic jobs.
- Branch line capacity Low for TP9630 and TP9633 Branch line capacity High for TP9600, TP9610, TP9603, TP9620.
- Description: Pneumatic Thermostat Direct Acting, Wall Thermostat, I or 2 pipe operation
- Application: Wall Thermostat
- Remote Bulb: No
- Setpoint: Single
- Action: Direct Acting Heating, Reverse Acting Cooling
- Number of Pipes: 1 or 2
- Setpoint Temperature Range (F): 60 F to 90 F
- Air connections: Barb fittings 5/32 in. (4 mm)
- Sensor Element: Bimetal
- Supply Pressure (kPa): 18 psi
- Maximum Safe Operating Pressure (psi): 25 psi
- Operating Temperature Range (F): 50 F to 100 F
- Storage Temperature (F): 150 F maximum
- Throttling Range (F): 2 F to 10 F
- Airflow Usage: 0.011 scfm (5.2 mL/s)
- Dimensions (in.): 3-1/4 in. high x 2 in. wide x 1-5/8 in. deep
- Mounting: Vertical Wall Mounting
- Includes: Cover, Setpoint, and Thermometer is Visible
