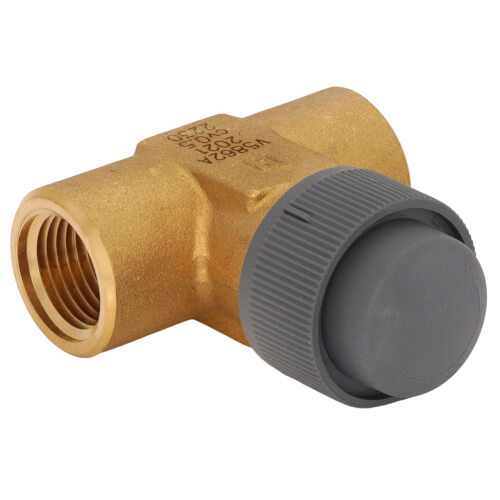

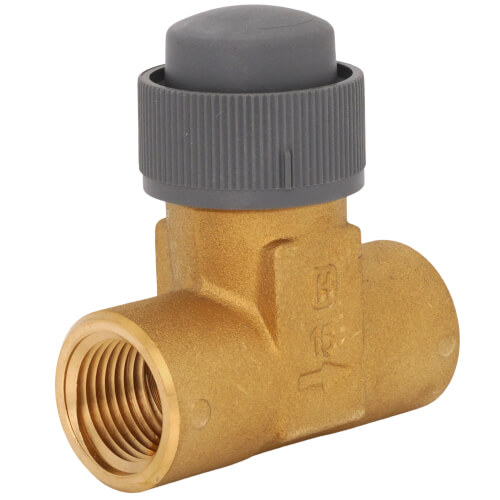

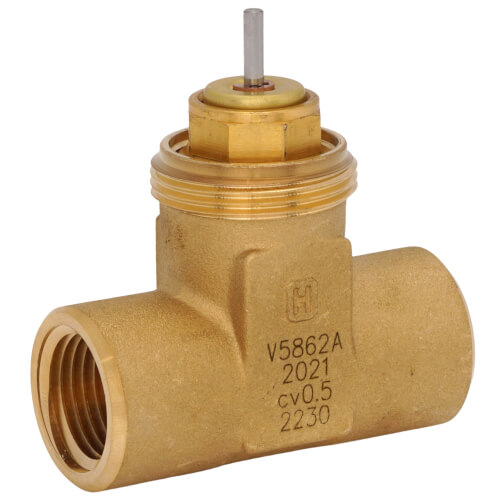

1/2" NPT Two Way Cartridge Globe Valve (.47 Cv)
Tue, Apr 4
|7||Tue, Apr 4|
Questions? Call 1-888-757-4774
Easy Returns No restocking fee for 30 days
Free Shipping On orders over $99
Two-way Cartridge Globe Valves control hot and/or chilled water for VAV terminal units, fan coil units, small reheaters and recoolers in electric/electronic temperature control systems. Used with the M6410 3-position floating Non-Spring Return Valve Actuator and the M7410 selectable 0 to 10 Vdc or 2 to 10 Vdc Non-Spring Return Actuator. The 1/2" and 3/4" valves are compatible with the M6435 floating Spring Return Actuator, the M7435 selectable 0 to 10 Vdc or 2 to 10 Vdc Spring Return Actuator, and the MP958 Pneumatic Actuator. Larger valves (1" through 1-1/2") are pressure balanced, which results in higher close-off pressures.
- Long stroke allows wider range of control.
- Soft valve seat provides low leakage rate.
- Inserts for 1/2 in. and 3/4 in. valves are changeable without draining valve when used with an insert replacement tool.
- Brass body and Stainless Steel stem.
- Threaded plastic cover/manual handle allows manual operation.
- Easily installed in areas where space is limited.
- Valve Type: Cartridge Globe Valve
- Body Pattern: Two-way
- Flow Characteristic: Equal Percentage
- Controlled Medium: Chilled or hot water with up to 50% Glycol
- Connection Type: NPT (Female)
- Max. Safe Operating Pressure: 235 psi
- Valve Action: Stem down to close
- Actuation: Must be purchased separately
- Stem Travel: 1/4 in.
- Ambient Temperature: 36 to 230 F
- Leakage Rating: ANSI Class IV (0.01% of Cv maximum)
- Used with: M6410A1029; M7410F1000; M6435A1004; M7435F1001; MP958
Flow Capacity (Cv):
36° to 230°F
