Description

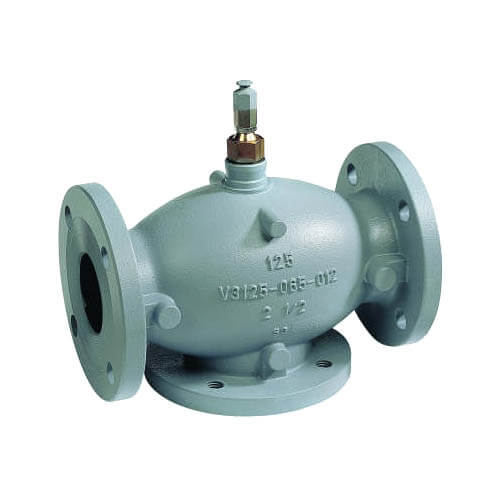

VGF Flanged Globe Valves are used for 2-position or modulating control of hot water or chilled water-glycol solutions up to 50% concentration in heating, ventilation and air conditioning (HVAC) systems. They can be operated by ML6984/7984, ML6420/6425, ML6421/7421 Electric Linear Actuators, MP953 Pneumatic Actuators, Modutrol Motors with Q5001 valve linkage, or MN/MS Series Direct Coupled Actuators with Q5020 or Q5022 valve linkages. Three-way bodies are available in mixing or diverting style with equal percentage and linear flow characteristics, respectively. For boiler/chiller bypass applications requiring tight close-off, use VGF31/32LD diverting valves. For outdoor temperature compensation of building supply water, or modulating control of heat exchangers, use VGF31/32EM mixing valves.

Features
  • ANSI Class 125 and Class 250 cast iron bodies with flanged end connections.
  • Face-to-face flange dimensions per ANSI/ISA S75.03 standard.
  • Sizes from 2-1/2 to 6 inches.
  • Stainless steel trim standard for long life span.
  • Self-adjusting packing.
  • Accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control.
  • Universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled Modutrol Motors and MN/MS Series direct coupled actuators.
  • Constant total flow throughout full plug travel (3-way diverting models).
  • Not suitable for combustible gasses.
Read more
Specs
Size:
6"
Flow Capacity (Cv):
360
Connection Type:
Flanged
Flow type:
Linear
Body Pattern:
3-Way
Max Pressure (PSI):
175
ANSI/ASME Rating:
125
Min Temp (F):
20°F
Temperature Range (F):
20°F to 250°F
Max Temp (F):
250°F
Stem Travel:
1-1/2"
Valve Type:
Globe
Controlled Fluid:
Chilled or hot water with up to 50% Glycol
Valve Action:
Stem Down to Close AB-A
Diverting
Differential (PSI):
13
Leakage Rating:
Port A seat leakage: 0.5%
Port B seat leakage 0.1%
Bonnet Size:
1-7/8"
Material:
Cast Iron ASTM A126 Class B
×
