Description

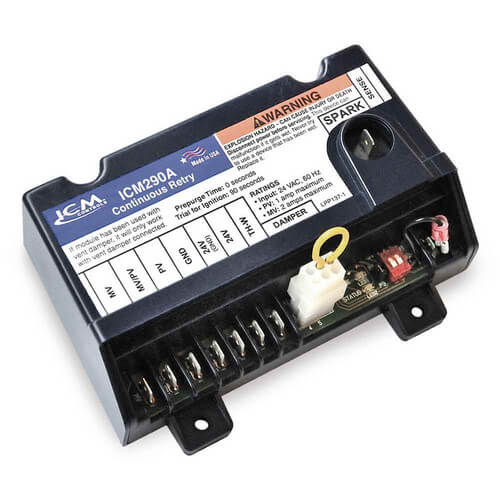

The ICM290 Universal Intermittent Pilot Gas Ignition Control Module provides easy field replacement of a wide range of intermittent pilot ignition modules manufactured by Honeywell, Robertshaw, Johnson Controls, and others. The ICM290 replaces existing flame rectification type, intermittent pilot ignition modules with the following characteristics:
  • Single rod (local sense) or two rod (remote sense) flame sensing
  • Non-100 percent shutoff, 100 percent shutoff/lockout, or 100 percent shutoff/continuous retry
  • Natural or LP gas
  • Shutoff/lockout times of 15 seconds or longer
  • Pre-purge configurable to 30 seconds or no prepurge
  • Pilot burners with flow rates of 1,500 Btuh or less
  • With or without integral damper connector

Product Features
  • Universal intermittent pilot gas ignition control
  • Provides ignition sequence, flame monitoring and safety shutoff for single/dual rod intermittent pilot control applications
  • For gas fired furnaces, boilers and other heating applications
  • Switch selectable pre-purge and ignition trials with permanent lock
  • Works with or without vent damper connected
  • Works with both Natural and LP gas systems
  • LEDs:
    • Green Status LED provides system status and error codes
    • Yellow Flame LED indicates flame presence and flame strength

Read more
Manuals (2)
Specs
Product Type:
Direct Spark Ignition
Control Voltage:
Line 24V (18-30 VAC) 50-60Hz
Anticipator Setting:
0.1A plus valve load @ 24 VAC
Trial For Ignition:
15 or 90 Seconds (switch selectable)
Operating Temp Range:
-40° to 165°F
Relative Humidity:
0% to 95% non condensing
×
