Description

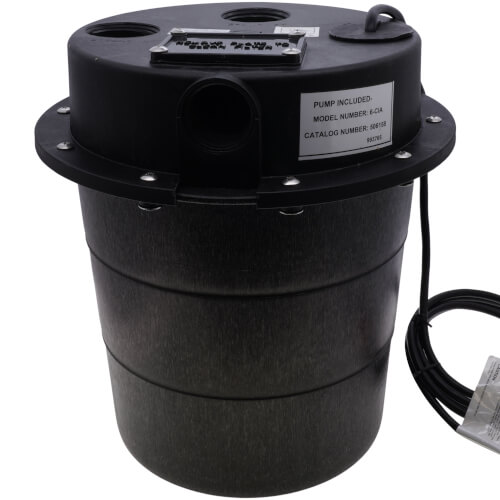

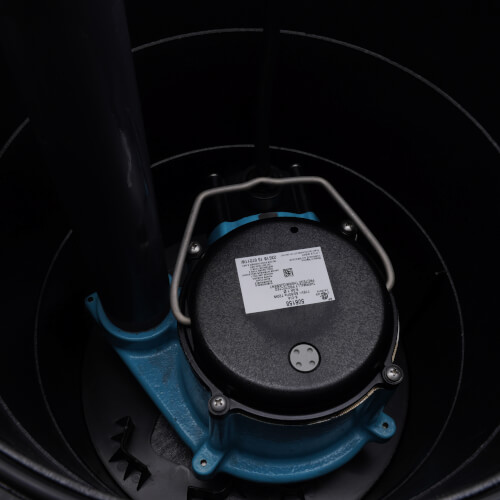

Includes 5-gallon polypropylene tank. Tank lid has 1 1/2" FNPT (38.1mm) side intake port, 1 1/2" FNPT (38.1mm) top discharge port, and 2" FNPT (51mm) top vent port. Easy-to-remove filter trap. Also includes 3/10 HP automatic submersible sump pump with 8' (2.4m) power cord and 3-prong grounded plug; and 1 1/2" (38.1mm) diameter pipe from pump to lid. Basin is IAPMO approved.

  • 3/10HP Shaded Pole Motor
  • 46 GPM/174 LPM
  • 18'/5.5m Maximum headIntermittent Liquid Temp. up to 125¦F
  • 1 1/2" FNPT (38.1mm) Discharge
  • Epoxy coated cast iron housing
  • Polycarbonate Cover
  • Polypropylene Volute
  • Nylon Impeller
  • Carbon/Ceramic Shaft Seal
  • Upper and lower, Sintered sleeve bearings>
  • Automatic Operation
  • Diaphragm switch Activator
  • Switch on - 7" - 10"/17.8cm - 25.4cm
  • Switch off - 1" - 4"/2.54cm - 10.2cm
  • 115V, 50/60Hz, 9 amps, 8' (2.4m) power cord
  • IAPMO Approved Basin

Read more
Specs
Type:
Automatic
Horse Power:
1/3
Voltage:
115v
Amperage:
9
Wattage:
720
Flow at 5 FT Head:
46 GPM
Flow at 10 FT Head:
29 GPM
Flow at 15 FT Head:
12 GPM
Approvals:
UL/CSA
Weight (lbs):
26 lbs.
Dimensions:
14.5"W x 15.56"H
Cord Length:
8 ft
Discharge:
1-1/2" FNPT
Shutoff Head (ft.):
18
Max Pressure (PSI):
7.8
Volume:
5 Gallon
×
