|BTU Capacity (Fixed Orifice):||
|BTU Capacity (Burner and Pilot):||
|BTU Capacity (Burner):||
|Max Inlet Pressure:||
Note: This product should be installed by a licensed gas fitter.
Suitable for usage with natural, manufactured, mixed, LP, or LP gas-air mixture.

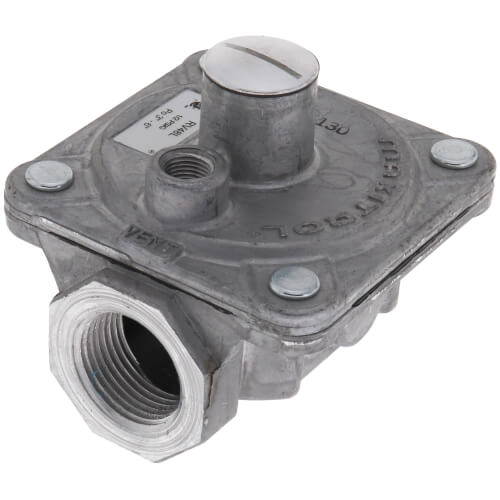

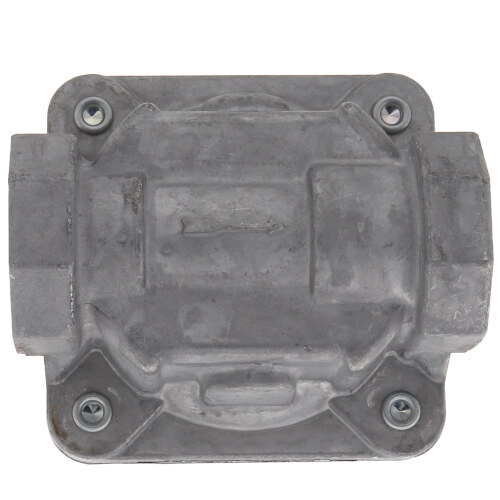

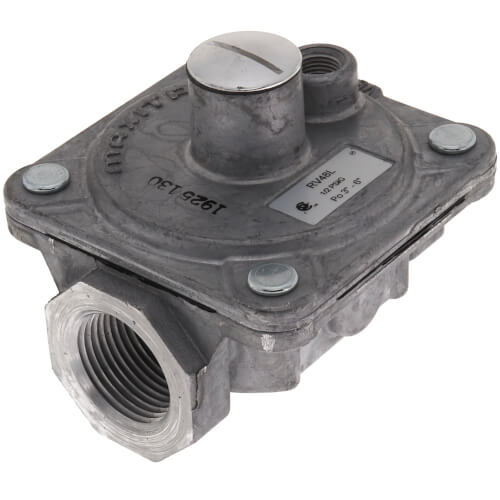

These rubber seat poppet type regulators are designed primarily for main burner and pilot load applications where precise control of tiny flows is an essential operating requirement.
The RV48 model may be used with either a 12A04 ball check device, or a 12A06 fixed orifice vent limiting device. Vent limiters are designed for use indoors and in spaces where limiting the amount of gas escapement due to diaphragm failure is critical. Vent limiters are not to be used outdoors if they are exposed to the environment. 13A15 vent protector is available for outdoor use when vent protection is required.
Maxitrol rubber seat poppet models offer the ultimate in design features and performance capabilities to meet specific appliance or utility requirements.
