FS5-1, 1" Flow Switch Zoom

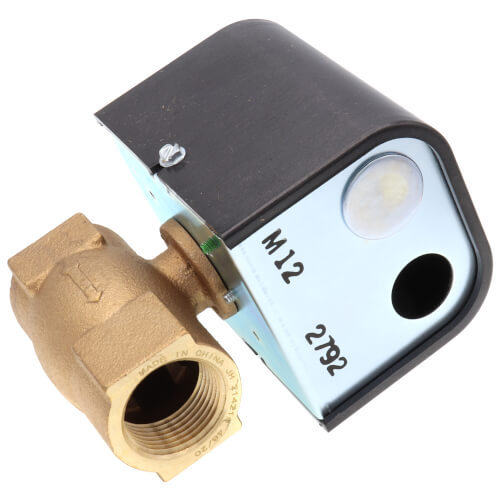

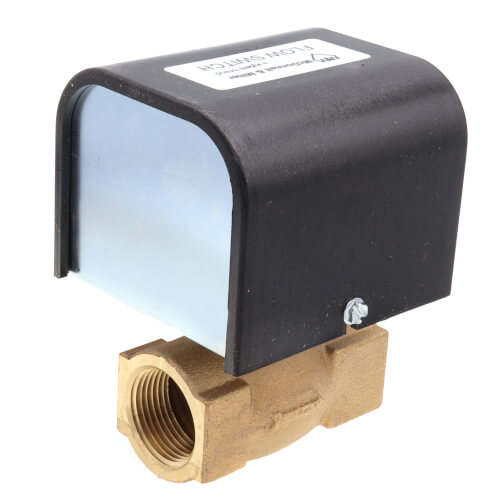

FS5-1, 1" Flow Switch

SKU:114780

Brand: Mcdonnell & Miller

Mcdonnell & Miller
Qty Price
$175.95
/ each
$509.25 / box (3 units x $169.75)
In Stock! Ships in 24-48 Hours
(30 Available)
0

Resources

Specs

Connection Size: 1"
Switch: SPDT
Type: General Purpose
Application: Liquid Flow
Amperage:
?
7.4
3.7
Voltage:
?
240v
120v
Max Pressure (PSI): 150 psi
Hertz: 50
60
Temperature Range (F): 32°-250°F

Description for Mcdonnell & Miller 114780

For general purpose applications requiring low flow rate sensitivity
Features

  • In-line configuration eliminates need for a pipe tee
  • Sizes available: 3/4" NPT, 1" NPT
  • Materials of construction: Brass, carbon & EPDM elastomer (for water
  • Models FS5 & FS5-D
  • Stainless steel, carbon and Buna N (for water or water and petroleum base compounds)
  • Models FS5-S & FS5-DS

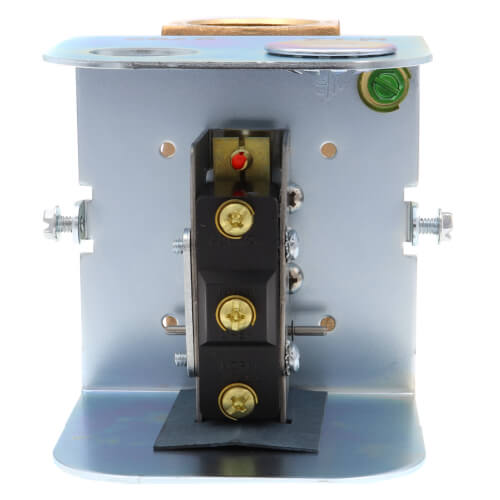

  • Single pole, double throw snap switch
  • Sensitivity adjusting screw makes flow adjustment easy

Optional Features
  • BSPT threads
  • Minimum temperature (fluid or ambient) 32 Deg. F (0 Deg. C)
  • Maximum temperature 225 Deg. F (107 Deg C) - Stainless Steel models 250 Deg. F (121 Deg C) - Brass
  • Maximum operating pressure 150 psi (10.5 kg/cm2)

FS5-1, 1" Flow Switch

REVIEW SNAPSHOT®

by PowerReviews
Mcdonnell & MillerFS5-1, 1" Flow Switch

4.0

(based on 2 reviews)

Ratings Distribution

  • 5 Stars



    (1)

  • 4 Stars



    (0)

  • 3 Stars



    (1)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

Reviewed by 2 customers

Sort by

Displaying reviews 1-2

Back to top


3.0

Sticky flapper

By Mark

from Denver, CO

Verified Buyer

Pros

    Cons

      Best Uses

        Comments about FS5-1, 1" Flow Switch:

        Many of the switches we put in have their flow flappers stick after water flows. we have installed quite a few of these and we con not set up the alarm feature we are contracted for due to the flapper sticking and causing false alarms.

        • Primary use:
        • Business

        5.0

        Works well

        By Mark

        from Denver

        Verified Buyer

        Pros

          Cons

            Best Uses

              Comments about FS5-1, 1" Flow Switch:

              Easy to install, signals well

              • Was this a gift?:
              • No

              Displaying reviews 1-2

              Back to top

              Q&A: Ask the Questions, share answers

              Do you have questions about this product?

              get answers from real customers and in-house experts with AnswerBox.

              1 Question | 1 Answer
              Displaying question 1
              • FS5-1, 1" Flow Switch

                Q:

                Hi!

                Would this product reduce/stop flow once the liquid reaches a preset temperature?
                Asked on 6/16/2011 by Japie

                1 answer

                • CUSTOMER CARE

                  A:

                  No, this is a valve that acts as a switch when it comes to the flow of water.

                  Answered on 6/21/2011 by PexSupply Staff from NY
