Description
Overview
The Milwaukee Fork Meter is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2205-20 is four tools in one, providing current measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63" fork opening, high 200 amp current range and a high contrast white-on-black display. Covered by Milwaukee 5-Year Warranty.

Features
  • Measures up to 200 amps, Wide 0.63" jaw opening
  • Wide voltage range to 1000 volts AC /DC
  • True-RMS for accurate measurement in all applications
  • Lo-Z measurement to eliminate ghost voltage
  • Built-in voltage detector and LED work light
  • High contrast, white on black display with backlight for easy reading
  • Rugged over-molding increases durability and user grip
  • CAT IV 600V / CAT III 1000V for greater safety
Includes

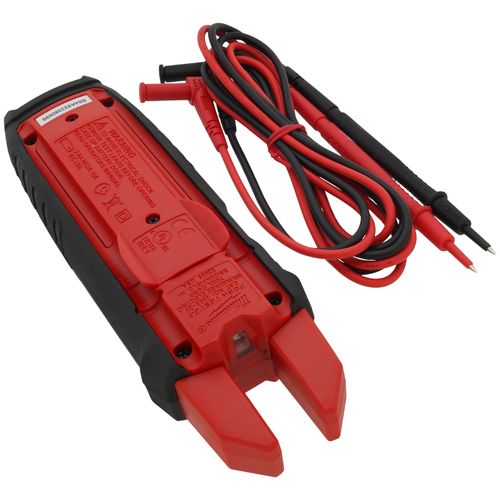

  • 2205-20 Fork Meter
  • Test Leads
  • (2) AA Batteries
  • Manual
Read more
Specs
Product Type:
Fork Meter
Voltage Range:
1000V AC/DC
AC Amps:
200
mV DC:
Same as VDC (no switch function)
Ohms:
600.0 Ohm-40.00M Ohm
Safety Category Rating:
CAT IV 600V / CAT III 1000V
Fork Opening:
0.63"
Switch:
Dial
Display:
High contrast white on black
Features:
Backlight
LED Work Light
Rugged overmolding
Indication:
Visual
Non-Contact Voltage:
Yes
TRMS:
Yes
Temperature:
No
Auto Calibration:
No (Recommend sending in for calibration service once every year)
Continuity:
Yes
Hold:
Yes
Lo-Z:
Yes
Capacitance:
No
Battery Type:
Alkaline (2 AA Included)
Length (Inches):
8"
Warranty:
5 Years
×
