Description
Features:

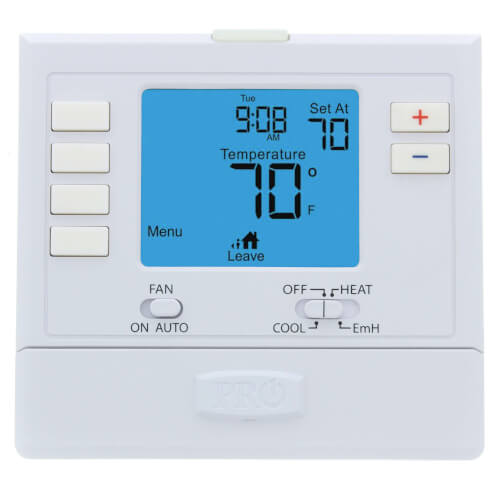

  • 4 sq. inch display
  • 5/1/1 programmable
  • Blue backlight
  • Easy menu driven programming
  • Glow in the dark light button
  • Intuitive wake, leave, return, sleep programming icons
  • Easy access battery compartment
  • Electric or Gas configurable
  • Separate B & O terminals
  • Separate heating and cooling swing (cycle rate) adjustments including 2nd stage adjustments
  • Filter change indicator (selectable on or off)
  • Room temperature calibration adjustment
  • 5 minute compressor delay protection (selectable on or off)
  • Simple private label badge system
  • Easy wire color coded terminal blocks

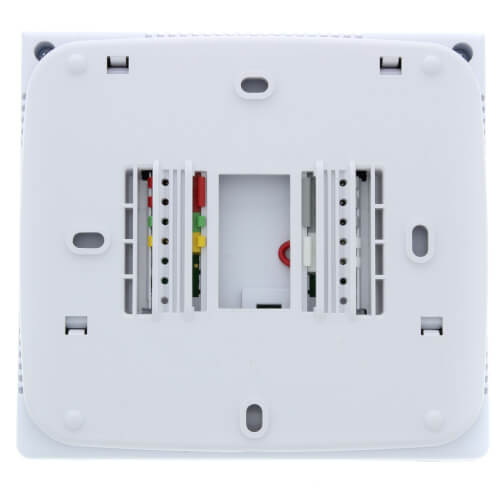

  • Universal sub-base
  • Mounts on wall or junction box
  • Battery or 24v power
  • 5 year warranty
  • Read more
    Manuals (2)
    Specs
    Application:
    Multi Stage (Heat/Cool)
    Heat Pump
    Mount:
    Junction Box
    Horizontal
    Power Method:
    Battery
    24V
    Stages:
    2 Heat/1 Cool
    Programmability:
    Programmable
    5-1-1 Day
    Voltage:
    24v
    Display Range:
    41°F to 95°F
    Control Temp Range (F):
    44°F to 90°F
    Operating Humidity:
    90% non-condensing
    User Interface:
    Push Button
    Wireless:
    No
    Humidity Control:
    No
    ×
