1/2" X 1/2" Millivolt Combo Gas Valve (100,000) Zoom
  • 360° View

1/2" X 1/2" Millivolt Combo Gas Valve (100,000)

SKU:700-501

Brand: Robertshaw

Robertshaw
Qty Price
$113.95
/ each
In Stock! Ships in 24-48 Hours
(3 Available)
0

Resources

Specs

Inlet Size: 1/2"
Outlet Size: 1/2"
Capacity: 100000 BTU
Capacity (BTU): 100
000
Voltage:
?
0.75v

Description for Robertshaw 700-501

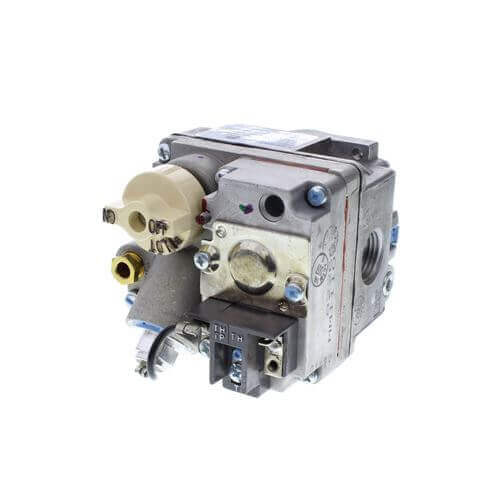

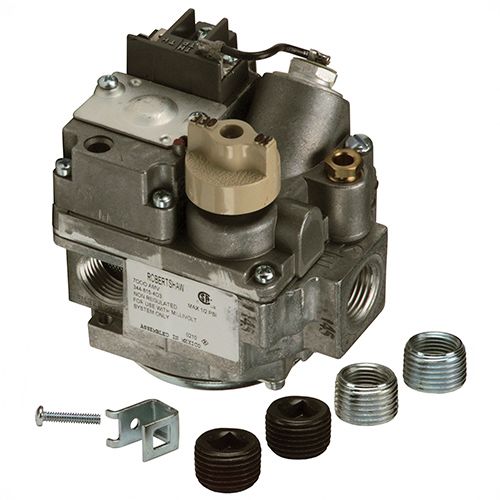

The 700 millivolt gas valves are wall thermostat actuated combination gas valves. These controls combine a manual gas cock, automatic pilot safety valve and a millivolt operator. The automatic pilot safety is separate from the gas cock and provides gas shutoff in case of pilot outage. Regulated and non-regulated models are available. Standard features include: pilot outlet, pilot gas filter and pilot adjusting key. VALVES CAN BE MOUNTED IN ANY POSITION EXCEPT UPSIDE DOWN. Consult ordering chart for individual control specifications.

1/2" X 1/2" Millivolt Combo Gas Valve (100,000)
