Direct Spark Ignition Control, no prepurge Zoom

Direct Spark Ignition Control, no prepurge

SKU:780-502

Brand: Robertshaw

Robertshaw
Qty Price
$127.75
/ each
$369.75 / box (3 units x $123.25)
In Stock! Ships in 24-48 Hours
(66 Available)

Specs

Ignition Type: Direct Ignition
Voltage:
?
24v
Connection Type: 1/4" Quick Connect
Features: No Prepurge

Description for Robertshaw 780-502

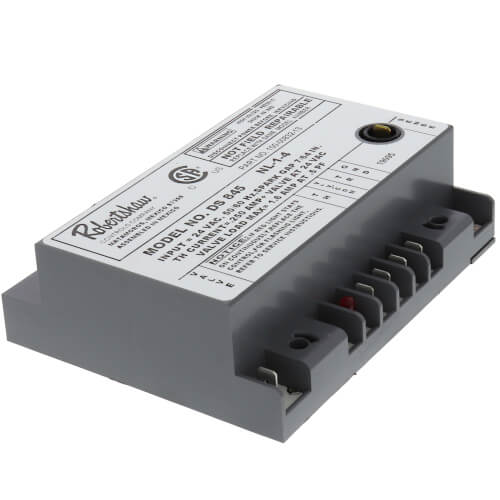

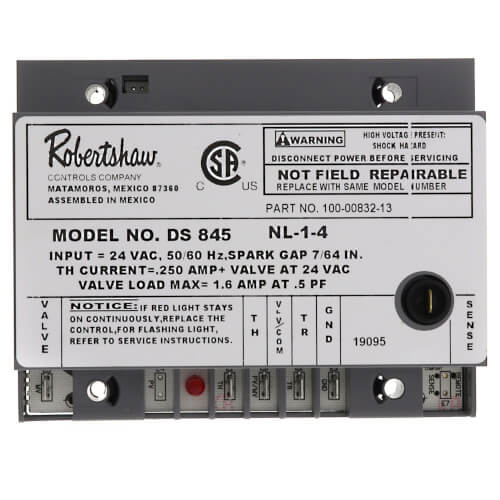

The 24 VAC DS845 Direct Ignition Control is applicable to commercial cooking equipment, gas fired heating and water heating systems of many types. The system acts on a demand for heat by a switch or thermostat to open the gas valve. At the same time the DS845 ignition control supplies a spark to the electrode which ignites the gas. After the gas is lit, an electronic circuit proves the presence of flame using flame rectification. When the thermostat is satisfied, the gas valve will be closed to shut off main burner gas.

Direct Spark Ignition Control, no prepurge
