Description

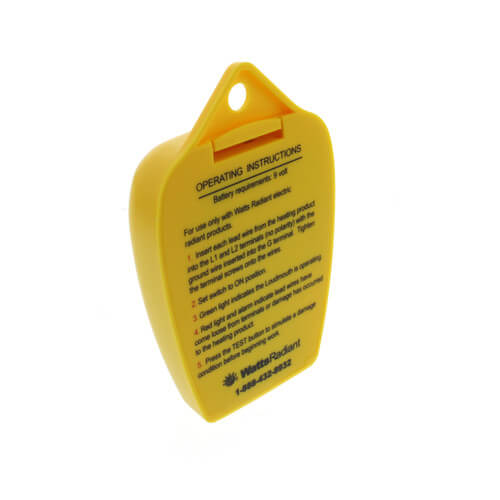

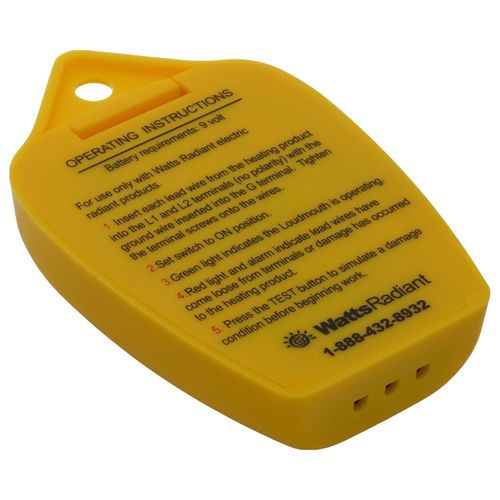

Operating Instructions:
  • 1. Insert each lead wire from the heating product into L1 and L2 terminals (no polarity) with the ground wire inserted into the G terminal. Tighten the terminal screws onto the wires.
  • 2. Set switch to ON position.
  • 3. Green light indicates the LoudMouth is operating.
  • 4. The red light and alarm indicate lead wires have come loose from terminals or damage has occurred to the heating product.
  • 5. Press the TEST button to simulate a damage condition before beginning work.
Read more
Specs
Type:
Installation Part
Application:
Accessory
×
