Description

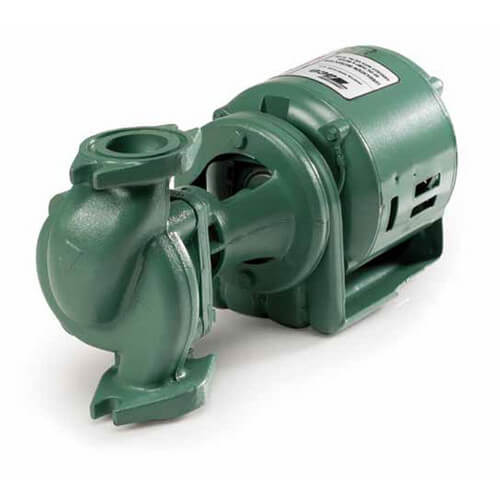

Taco 100 Series three piece circulator pumps are designed to efficiently circulate heated or chilled water in large residential and commercial hydronic systems. They are ideal for primary-secondary systems, as well as parallel pumping designs.

Features:
  • Proven Performance: In-Line Cartridge Design Pumps are backed by years of Taco experience in design and manufacture of circulators. Hundreds of thousands are in service.
  • Dependable, Quiet Operation: In-Line Cartridge Design Pumps offer quiet dependable pumping power and long lasting performance. Ideal for heating and/or air conditioning systems requiring high head performance, pressure boosting, and recirculation systems with relatively low volume.
  • Unique Cartridge Design: Replaceable "cooler running" bearing cartridge extends bearing life. With permanently sealed grease lubricated ball bearings, it is virtually maintenance free.
  • Cartridge Bearing Assembly: Cartridge design isolates the bearings from the effects of system fluid temperatures which greatly extends bearing life.
  • Mechanical Seal: Two piece carbon/ceramic seal is standard. Sealide-C/viton available for high temperature and aggressive water applications
  • Alloy steel shaft, Cupro-Nickel shaft sleeve
  • In-Line configuration
  • Impeller: Dynamically and hydraulically balanced
  • Drive Coupling: Rugged flexible rubber construction absorbs angular and parallel misalignment
  • Rugged Motor: Open-drip proof enclosure, Equipped with sleeve bearings for quiet operation, Resilient mounted, Built-in overload protector on single phase models
  • Factory Tested: Every pump is built to Hydraulic Institute standards and operated before shipment
  • Easy Low-Cost Service: No special tools required, One cartridge bearing assembly fits all models - replace cartridge only, not bracket. One mechanical seal fits all models.
Motor: 115V/230V/60/1 PH or 230V/460V/60/3 PH, or 200V/60/ 3 PH
Read more
Specs
Application:
Heating
Material:
Cast Iron
Horse Power:
3/4
RPM:
1725
Voltage:
230v
115v
Phase:
1
Hertz:
60
Max Flow (GPM):
130
Flow Range (GPM):
0-130
Max Head (Ft):
30
Head Range (ft.):
0-30
Connection Type:
Flanged
Connection Size:
3"
Type:
Pump
Warranty:
1-Year Limited Warranty
×
