3/4" Sweat 5003 Low Lead Mixing Valve Zoom

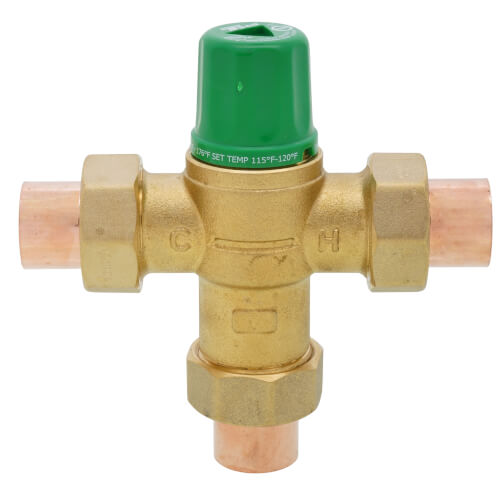

3/4" Sweat 5003 Low Lead Mixing Valve

SKU:5003-C3

Brand: Taco

Taco
Qty Price
$95.95
/ each
$278.85 / box (3 units x $92.95)
In Stock! Ships in 24-48 Hours
(66 Available)
0

Resources

Specs

Size: 3/4"
Material: Forged Brass
Max Pressure (PSI): 230
Body Pattern: 3-Way
Temperature Range (F): 85°F - 176°F
Connection Type: Sweat
Features: Lead Free
Standards Met: ASSE 1017
Application: Point of Source

Description for Taco 5003-C3

This versatile NSF 61 and ASSE 1017 mixing valve provides the ultimate performance for domestic hot water applications. The 5000 Series ASSE 1017 certification allows for domestic hot water storage at temperatures high enough to increase the effective storage capacity of a water heater, kill harmful bacteria and still be delivered at a safe 120°F or less. The valves unique design and advanced thermostatic element ensures a stable mixed water temperature throughout the extended 85°-176°F range.

Features Include:

  • ASSE 1017 Listed
  • Ideal for Domestic Water Distribution Points
  • Suitable for use in Potable Water
  • Delivers Stable Mixed Water Temperature
  • Extended Mix Temperature Range of 85-176°F
  • Tamper-Resistance Cap
  • Union and NPT Options
  • Sweat, NPT, Pex, CPVC Union Connections
  • Low Headloss
  • Outlet Temperature Strip
  • Optional Dial Gauge and Adaptor

3/4" Sweat 5003 Low Lead Mixing Valve

REVIEW SNAPSHOT®

by PowerReviews
Taco1/2" Sweat 5002 Low Lead Mixing Valve

4.6

(based on 18 reviews)

Ratings Distribution

  • 5 Stars



    (15)

  • 4 Stars



    (0)

  • 3 Stars



    (2)

  • 2 Stars



    (0)

  • 1 Stars



    (1)

89%

of respondents would recommend this to a friend.

Pros

    Cons

      Best Uses

          • Primary use:
          • Personal (13), Business (5)

        Most Liked Positive Review



        Works great

        I installed this on my hot water heater. This serves several purposes: 1. It regulates the water temperature better, the temperature does not go up or down as the tank empties, or...Read complete review

        I installed this on my hot water heater. This serves several purposes: 1. It regulates the water temperature better, the temperature does not go up or down as the tank empties, or when the burner comes on. and 2. I can get more hot water out of my 30 gallon tank. We do not run out of water any more. The price was a lot less than a new water heater and the installation was easier as well.I also bought two Sharkbite Temp gauges. One on the hot water, and one on the mixed water. It is a bit of an extravagance, but it makes it very easy to see how well it is working, and it is working very well. It confirms the factory setting of 130 degrees is correct as well as steady, and when I changed it, I could see the result quickly and easily. The gauge on the hot water outlet shows me how much the Honeywell thermostat is off, (which was considerable). I put the water heater at 160 degrees, and the mixed temp was rock steady at 130. Also, now, I NEVER run out of hot water.I set the mixed temp down to about 118, and the hot water to 140. We are very happy with this setting. Steady temperature and plenty of hot water.If you choose to economize and get only one gauge, put it on the hot water side. You can always measure the mixed water with a meat thermometer at a faucet. You cannot measure the hot water side.Reading the other messages, it looks like there is an O ring that can go bad. It would probably be a good idea to buy it for a spare when you get this. [...]

        VS

        Most Liked Negative Review



        problems

        A professional plumber installed mine when I received a whole new gas fired furnace in summer of 2007. Worked fine until this past Feb 2012. In the past 2 months the temperature of the...Read complete review

        A professional plumber installed mine when I received a whole new gas fired furnace in summer of 2007. Worked fine until this past Feb 2012. In the past 2 months the temperature of the hot water to our shower has become totally unreliable. While the main tank is 160F the valve starts off suppling water at 120F then drops to 90F or lower, I then need to manually turn the valve back and forth to get it to "unstick" and give us water at 120F. It is then okay for a few days. Unfortunately it returns back to only allowing water in at 90F or lower without any warning. I have set it to allow max hot water, but this has not solved the problem.

        Reviewed by 18 customers

        Sort by

        Displaying reviews 1-10

        Back to top

        Previous | Next »


        5.0

        Taco Mixing Valve

        By Don

        from Ny

        Verified Buyer

        Pros

          Cons

            Best Uses

              Comments about 3/4"" Sweat 5003 Low Lead Mixing Valve:

              Very good quality, nice features, easy to adjust set point.

              • Primary use:
              • Personal

              3.0

              it doesn't fit the same as the old one

              By service man

              from orange co. ny

              Verified Buyer

              Pros

                Cons

                  Best Uses

                    Comments about 3/4"" Sweat 5003 Low Lead Mixing Valve:

                    i bought this item to replace an old taco mixing valve, i tought i'll be able to just remove the nuts and install the new one without soldering , but it doesn't fit the same and i had to cut and solder the copper pipes

                    • Primary use:
                    • Business

                    5.0

                    Perfect product for my application

                    By Very fussy do it yourselfer

                    from Nashua, NH

                    Verified Buyer

                    Pros

                      Cons

                        Best Uses

                          Comments about 3/4"" Sweat 5003 Low Lead Mixing Valve:

                          A great product that has been beautifully manufactured. It has the adjustability to deliver water at the correct temperature at distant point of use. Very easy to make adjustments. Very easy installation.

                          • Primary use:
                          • Personal

                          5.0

                          Solved my water problem

                          By A

                          from Stroudsburg PA

                          Verified Buyer

                          Pros

                            Cons

                              Best Uses

                                Comments about 1/2" Sweat 5002 Mixing Valve:

                                This was a like replacement of a mixing valve that had become corroded

                                • Primary use:
                                • Personal

                                5.0

                                Great product

                                By fatso

                                from mpls, mn

                                Verified Buyer

                                Pros

                                  Cons

                                    Best Uses

                                      Comments about 3/4" Sweat 5003 Mixing Valve:

                                      The install was simple and the product works as advertised, wife is very pleased with excessively long showers.

                                      • Primary use:
                                      • Personal

                                      5.0

                                      excellent product

                                      By scrooge

                                      from manville nj

                                      Verified Buyer

                                      Pros

                                        Cons

                                          Best Uses

                                            Comments about 1/2" Sweat 5002 Mixing Valve:

                                            used on furnace & was very satified

                                            • Primary use:
                                            • Personal

                                            (0 of 1 customers found this review helpful)


                                            5.0

                                            Quality,

                                            By JFK

                                            from Commack, NY

                                            Verified Buyer

                                            Pros

                                              Cons

                                                Best Uses

                                                  Comments about 3/4" Sweat 5003 Mixing Valve:

                                                  Easy to connnect, and separate in the future for replacement, if necessary. PexSupply delivered, as promised.

                                                  • Primary use:
                                                  • Personal

                                                  5.0

                                                  quality product

                                                  By mr jim

                                                  from corinna me.

                                                  Verified Buyer

                                                  Pros

                                                    Cons

                                                      Best Uses

                                                        Comments about 1/2" Sweat 5002 Mixing Valve:

                                                        installed in new system-operates well

                                                        • Primary use:
                                                        • Business

                                                        (2 of 3 customers found this review helpful)


                                                        1.0

                                                        problems

                                                        By Tom

                                                        from Maryland

                                                        Pros

                                                          Cons

                                                            Best Uses

                                                              Comments about 1/2" Sweat 5002 Mixing Valve:

                                                              A professional plumber installed mine when I received a whole new gas fired furnace in summer of 2007. Worked fine until this past Feb 2012. In the past 2 months the temperature of the hot water to our shower has become totally unreliable. While the main tank is 160F the valve starts off suppling water at 120F then drops to 90F or lower, I then need to manually turn the valve back and forth to get it to "unstick" and give us water at 120F. It is then okay for a few days. Unfortunately it returns back to only allowing water in at 90F or lower without any warning. I have set it to allow max hot water, but this has not solved the problem.

                                                              • Primary use:
                                                              • Personal

                                                              5.0

                                                              Excellent product

                                                              By JoeB

                                                              from East Setauket, NY

                                                              Verified Buyer

                                                              Pros

                                                                Cons

                                                                  Best Uses

                                                                    Comments about 1/2" Sweat 5002 Mixing Valve:

                                                                    Very easy to install. I'm a homeowner with little plumbing experience and I was able to install the mixing valve with ease. Performed perfectly. Easy to adjust water temp.

                                                                    • Primary use:
                                                                    • Personal

                                                                    Displaying reviews 1-10

                                                                    Back to top

                                                                    Previous | Next »

                                                                    Q&A: Ask the Questions, share answers

                                                                    Do you have questions about this product?

                                                                    get answers from real customers and in-house experts with AnswerBox.

                                                                    9 Questions | 14 Answers
                                                                    Displaying questions 1-9
                                                                    • 1/2" Sweat 5002 Low Lead Mixing Valve

                                                                      Q:

                                                                      I had a Taco mixing valve installed as part of my hydronic radiant floor system. The bloke who installed it put it on backwards, with hot going into the cold side, and vice versa. Does this matter? Will it still work?
                                                                      Asked on 10/7/2014 by 717.John from Lancaster PA

                                                                      3 answers

                                                                      • VERIFIED BUYER

                                                                        A:

                                                                        It should be hot and return piped to the valve, if they are reversed it should still work but the dial would also be reversed hot direction would be lower temperature.
                                                                        Turn it down to get hotter water etc.

                                                                        Answered on 10/7/2014 by TJ from maine
                                                                      • VERIFIED BUYER

                                                                        A:

                                                                        Short answer, no.
                                                                        But, with the unions and the fact that it is symmetrical you should be able
                                                                        to rotate it 180 degrees, reconnect, and be good. The valve works much like
                                                                        a thermostat in a car, the heat needs to be on the right side of the
                                                                        temperature sensor to open/close the hot supply and do the job.

                                                                        Answered on 10/7/2014 by DonS from Oakland, CA
                                                                      • VERIFIED BUYER

                                                                        A:

                                                                        The question is whether or not the 'output' is affected by adjusting the
                                                                        metering valve control.. Think of it this way- The old water is partially
                                                                        depleted of heat and needs to be revitalized by NEW hotter water in order
                                                                        to reach the intended design temp.
                                                                        I assume that a thermometer has been installed on the OUTPUT leg of each
                                                                        valve? There should have been. You can try adjusting the valve in order to
                                                                        determine the effect of however much adjustment is made by noting changes
                                                                        in the temperature out while the circulator is in operating mode that is.
                                                                        Good luck- John, ****@***.***

                                                                        Answered on 10/7/2014 by WindwoodTrader from Upstate NY
                                                                    • 3/4"" Sweat 5003 Low Lead Mixing Valve

                                                                      Q:

                                                                      This product specifies 1 gpm minimum flow. Does this mean it will not work with low flow hot water usages, such as a bathroom sink with an aerator?
                                                                      Asked on 2/9/2014 by Roy from United States

                                                                      1 answer

                                                                      • CUSTOMER CARE

                                                                        A:

                                                                        That is correct, the valve requires at least 1gpm in order to operate. If the low flow fixture runs at less than that it will not work correctly.

                                                                        Answered on 3/7/2014 by PexSupplyStaff from New York
                                                                    • 1" Sweat 5004 Mixing Valve

                                                                      Q:

                                                                      Can this part be used as a replacement for a 5000 without having to replumb? I just want to install the valve without having to use the short pieces of copper pipe that come with it.
                                                                      Asked on 5/5/2013 by Leaky from NH

                                                                      1 answer

                                                                      • VERIFIED BUYER

                                                                        A:

                                                                        As long as the threads on the union match the threads on the valve you do not need them.
                                                                        The copper pieces come with it so if you do not already have unions in place then you have them to install.

                                                                        Answered on 5/5/2013 by TJ from maine
                                                                    • 3/4" Sweat 5003 Mixing Valve

                                                                      Q:

                                                                      Does this have check valves (on the inlets)?
                                                                      Asked on 2/13/2012 by Dave

                                                                      1 answer

                                                                      • CUSTOMER CARE

                                                                        A:

                                                                        It does not. If you need a check valve, you would either need to install one in-line or use a circulator pump with an integral check valve.

                                                                        Answered on 2/14/2012 by PexSupply Staff from NY
                                                                    • 1" Sweat 5004 Mixing Valve

                                                                      Q:

                                                                      Can I manifold two of these valves to get a higher flow capacity?
                                                                      Asked on 1/30/2012 by Altenergy from Virginia

                                                                      1 answer

                                                                      • CUSTOMER CARE

                                                                        A:

                                                                        We do not believe so. If anything, that might restrict the flow even more.

                                                                        Answered on 1/31/2012 by PexSupply Staff from NY
                                                                    • 1/2" Sweat 5002 Mixing Valve

                                                                      Q:

                                                                      i have a taco 5000-2 mixing valve, installed 1-09, it just recently stopped passing hot water. had to turn to 'full hot' position to take a hot shower. how to fix, what parts needed?
                                                                      Asked on 7/24/2011 by Anonymous

                                                                      2 answers

                                                                      • CUSTOMER CARE

                                                                        A:

                                                                        The cartridge may have failed. You may want to try replacing the cartridge (part 5002-006RP).

                                                                        Answered on 8/3/2011 by PexSupply Staff from NY
                                                                      • VERIFIED BUYER

                                                                        A:

                                                                        I had the same problem with this valve in the past. Probably too many sediments in the water. You can try taking it apart, pretty easy to do, and inspect and clean the inside. Should do the trick. If you don't have a sediment filter on your water line, it may be a good idea to install one. That is my plan for this summer.

                                                                        Answered on 3/22/2012 by JoeB from East Setauket, NY
                                                                    • 3/4" Sweat 5003 Mixing Valve

                                                                      Q:

                                                                      It helps me understand how things work when I can see how the product is made. Do you have a picture of the internals of this type of valve and how the temperture is controlled?
                                                                      Asked on 3/26/2011 by THE GENERAL from MEDINA, NEW YORK

                                                                      2 answers

                                                                      • CUSTOMER CARE

                                                                        A:

                                                                        All the documentation we have on this valve is listed under the 'Manuals' tab.

                                                                        Answered on 3/28/2011 by PexSupply Staff from NY
                                                                      • VERIFIED BUYER

                                                                        A:

                                                                        Please see the attachment:

                                                                        http://www.forwardthinking.honeywell.com/related_links/water/amx_300/sell/63_9876.pdf

                                                                        Answered on 1/9/2012 by Southeast Solar Co from Norcross GA
                                                                    • 3/4" Sweat 5003 Mixing Valve

                                                                      Q:

                                                                      How is this 5003 different than the 5000 mixing valve I bought 5 years ago and no longer available? I have a leaking valve that needs o-ring replacement but can not find where to buy. Must I buy a new valve every time this happens?
                                                                      Asked on 12/20/2010 by Anonymous

                                                                      2 answers

                                                                      • A:

                                                                        Customer Care Answered this question for the o-rings stating to order 5002-002RP. I did, those are the 3 o-rings that attach to the hot/cold inputs and mixed water output. You probably want to order them and replace them anyway if you remove the valve. I asked Taco and they said to order part 5002-005RP which PexSupply.com also carries. I have a leaky value, pulled it apart today and see that 5002-002RP are the three gaskets on the inputs/output. Part 5002-005RP is a non-standard part to I am waiting to get it 2-3 weeks. I may just order a whole new valve.

                                                                        Answered on 12/31/2013 by JohnDoe from Midwest.
                                                                      • CUSTOMER CARE

                                                                        A:

                                                                        The part number for the O-ring gaskets is 5002-002RP. This should work for your existing valve as well.

                                                                        Answered on 12/28/2010 by PexSupply Staff from NY
                                                                    • 1/2" Sweat 5002 Mixing Valve

                                                                      Q:

                                                                      How does this valve correspond to a thermostat? How is it powered? 24V? line-voltage? 240?
                                                                      Asked on 9/23/2010 by Anonymous

                                                                      1 answer

                                                                      • CUSTOMER CARE

                                                                        A:

                                                                        This unit does not run on power. It is a thermostatic (manual set) valve.

                                                                        Answered on 9/24/2010 by PexSupply Staff from NY
                                                                    Displaying questions 1-9
