1 Zone Switching Relay Zoom
  • 360° View

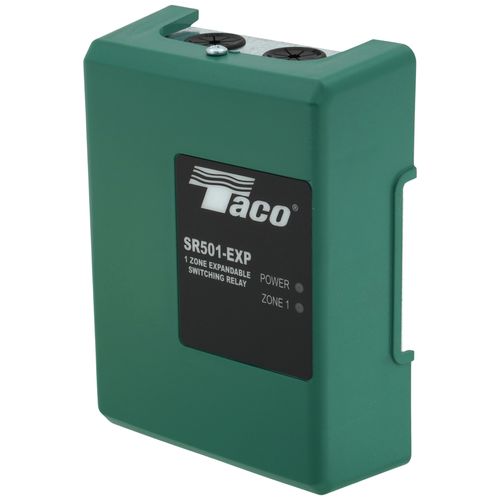

1 Zone Switching Relay

SKU:SR501-EXP-4

Brand: Taco

Taco
Qty Price
$103.95
/ each
In Stock! Ships in 24-48 Hours
(354 Available)
5

Resources

Specs

Zones:
?
1
Width: 4-1/4"
Height: 5-1/4"
Depth (Inches): 2-3/4"
Amperage:
?
5
PowerPort Slots: 0
Power Control Plugs: 1
Application: Zoning
Power Method: 120 VAC Input
Voltage:
?
120 VAC

Description for Taco SR501-EXP-4

The single zone switching relay should be standard equipment for every installer. No matter what type of job, our single zone switching relay replaces every brand made by every manufacturer, and will even fit into the existing metal enclosure without rewiring incoming connections. The single zone switching relay is UL and CSA listed, uses a standard “ice cube” replaceable relay and is compatible with conventional and programmable thermostats. External indicator lights provide instant diagnostic feedback, making a snap of service calls or new installation start-ups.

Features

  • External Indicator Lights
  • Universal Replaceability
  • Snap-in PC Board
  • Simplified Wiring
  • Fully Enclosed Snap-Out Relays
  • Fuse Protected (with spare)
  • 100% Factory Tested
  • Contractor Friendly PC Board Layout
  • Universal Thermostat Compatibility
  • UL and CSA Approved
  • Extended 3 Year Warranty
  • Made in the USA
Additional EXP Features
  • One Add-on Power Control Plug
  • Premium Sealed Relays
  • Interface with all -EXP Multi-Zone Controls

1 Zone Switching Relay
