Indoor Sensor - G Enclosure Zoom

Indoor Sensor - G Enclosure

SKU:076

Brand: Tekmar

Tekmar
Qty Price
$36.55
/ each
In Stock! Ships in 24-48 Hours
(15 Available)

Specs

Type: Indoor Sensor
Width: 2-7/8"
Height: 2-7/8"
Depth (Inches): 13/16"
Power Supply: Wired to Control
Temperature Range (F): -60°-140°F
Sensors: NTC Thermistor
10 k ohm @ 77°F
Color: White
Enclosure Type: G

Description for Tekmar 076

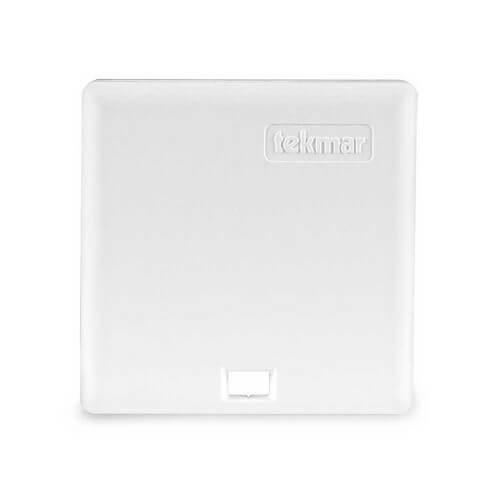

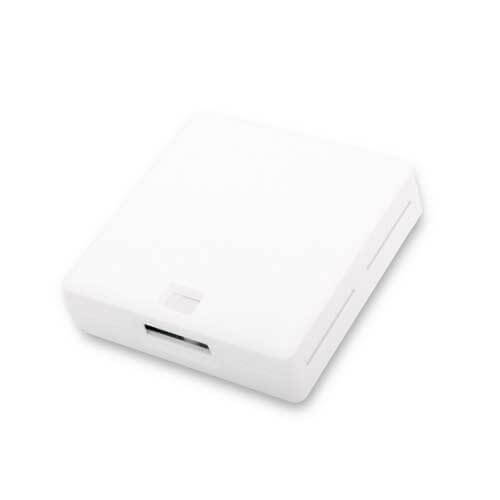

The Tekmar Indoor Sensor 076 includes a 10 kΩ thermistor which provides accurate measurement of the indoor temperature. The 076 can be mounted directly on the wall using two #6 - 1" screws. The small size of the 076 makes this sensor visually appealing and less noticeable on the wall. The 076 can be connected to a 10K Room Temperature Unit (RTU) for remote temperature sensing.
Specifications:
Literature: D 074
Packaged Weight: 0.16 lb. (72 g), Enclosure G, white PVC plastic
Dimensions: 2-7/8+ H x 2-7/8+ W x 13/16+ D (73 x 73 x 21 mm)
Approvals: CSA C US
Operating range: -60 to 140+F (-50 to 60+C)
Sensor: NTC thermistor, 10 kΩ @ 77+F (25+C +0.2+C), +=3892
