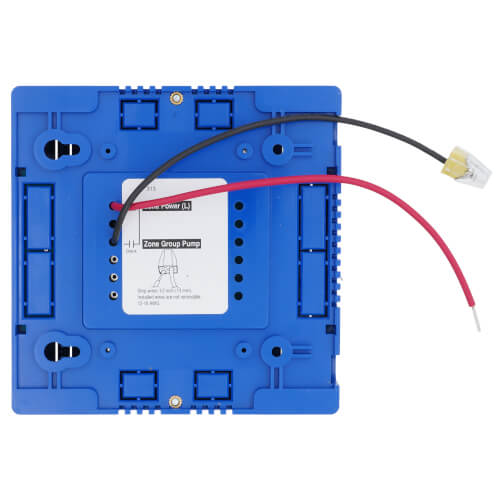

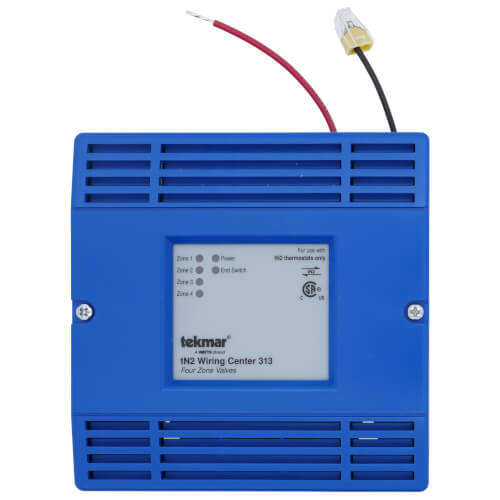

tN2 Wiring Center Zoom

tN2 Wiring Center

SKU:313

Brand: Tekmar

Tekmar
Qty Price
$192.95
/ each
$560.85 / box (3 units x $186.95)
In Stock! Ships in 24-48 Hours
(7 Available)
0

Resources

Specs

Height (Inches): 5.5
Width: 5-1/2"
Depth (Inches): 2-1/4"
Temperature Range (F): 36-122
Voltage:
?
24v
Enclosure Type: O
Application: Zoning
Type: Wiring Center
Relays: 24 V (ac) 2 A
Weight (lbs): 1.37 lbs
Ambient Conditions: Indoor use only - 32 to 122°F - RH 90% Non-condensing
Power Supply: 24V (ac)
Zone Valve Load: 24 V (ac) 2 A
max combined current (zones 1 to 4): 4 A

Description for Tekmar 313

The tekmarNet®2 (tN2) Wiring Center 313 is designed to operate up to four zone valves in a hydronic heating system. It can be mounted near a remote zone manifold, providing a convenient location to wire both thermostats and zone valves while only requiring two wires to be run back to the mechanical room. When combined with tekmarNet®2 Thermostats, all devices communicate to provide a synchronized end switch that reduces cycling of equipment.

  • Enclosure: O-Enclosure, blue PC+ABS UL94-5VA plastic
  • Dimensions: 5.5" H x 5.5" W x 2.25" D (140 x 140 x 57 mm)
  • Approvals: CSA C US, CSA 22.2 No. 24 and UL 873, meets class B: ICES & FCC Part 15
  • Ambient Conditions: Indoor use only, 32 to 122°F (0 to 50°C). RH 90% Non-condensing
  • Power Supply: 24 V (ac) ±10% 60 Hz, 100 VA max, Class 2
  • Zone Valve Load: 24 V (ac) 2 A, maximum combined current (zones 1 to 4): 4 A
  • End Switch Relay Rating: 24 V (ac) 2 A

tN2 Wiring Center

REVIEW SNAPSHOT®

by PowerReviews
TekmartN2 Wiring Center

4.0

(based on 1 review)

Ratings Distribution

  • 5 Stars



    (0)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

Reviewed by 1 customer

Displaying review 1

Back to top


4.0

Priority matters

By HVAC David

from CT

Verified Buyer

Pros

    Cons

      Best Uses

        Comments about tN2 Wiring Center:

        Simple & straightforward to install. If connecting to a larger TN4 network remember that the TN4 contacts ARE polarity sensitive. That will save lots of troubleshooting time.

        • Primary use:
        • Business
