Description

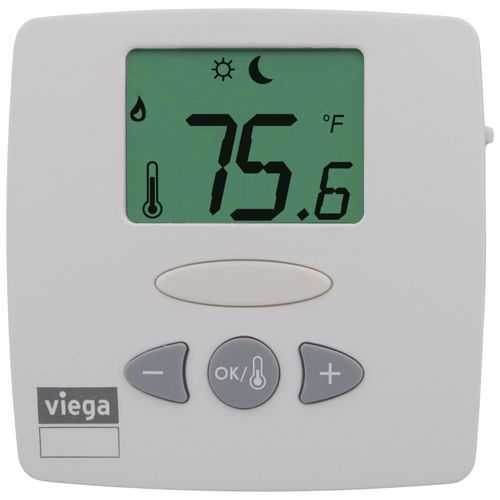

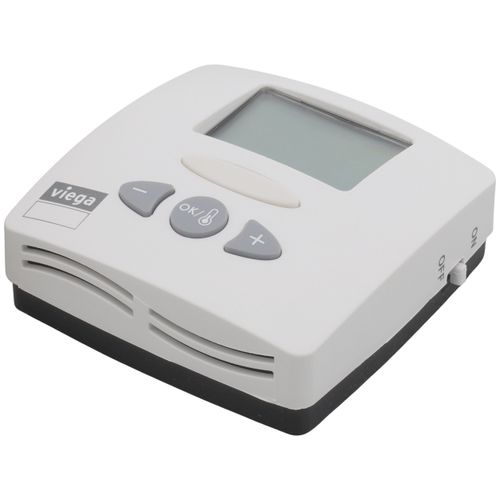

The Digital Thermostat is ideal for individual room temperature control. A user friendly three button design allows for easy change of settings. Thermostat can sense either room temperature, floor temperature or both. Adjustable temperature setback function allows for energy savings. Thermostat can control up to four Powerheads directly or can be connected to a zone / circulator control box. With optional floor sensor, thermostat provides floor high or low limit function for floor protection or floor warming.

Features:
  • Compact design
  • Digital LCD display
  • Regulates floor or room temperature or both
  • Optional Floor Sensor available, #18051 (not included)
  • Setback function
Read more
Manuals (2)
Specs
Mount:
Horizontal
Application:
Heat Only
Options:
Works with Sensor
Control Panel:
Digital
Programmability:
Non-Programmable
User Interface:
Push Button
Control:
Microprocessor Control
Accuracy:
0.2°F
Operating Temp Range:
41°to 99°F
0.5°F increments
Environment Range:
32°-122°F
Power Supply:
24V +/- 10% 60 Hz 15 W Max
Output:
TRIAC output 24 VAC 15 W Max
Floor Limiting Range:
50°-104°F
Type:
Thermostat
×
