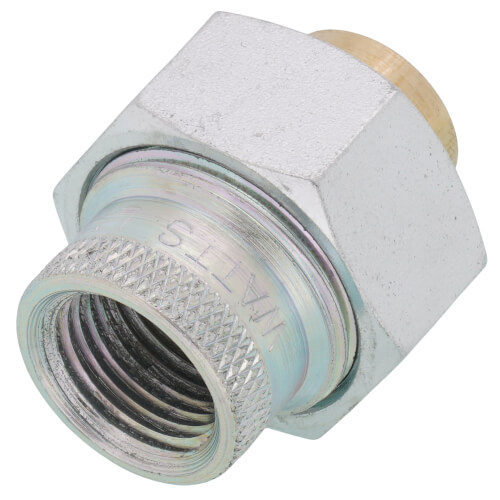

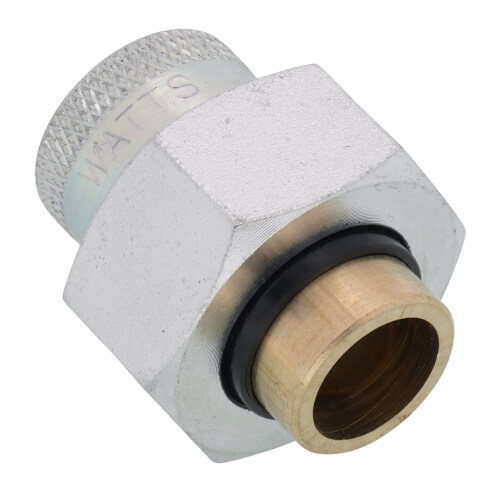

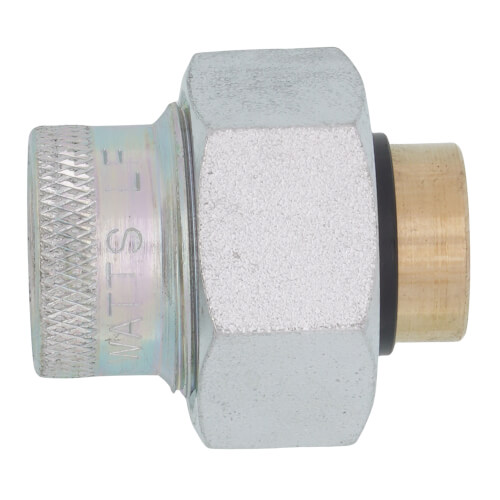

1/2" LF3001A CxF Dielectric Union, Lead Free Zoom

1/2" LF3001A CxF Dielectric Union, Lead Free


Brand: Watts

Qty Price
/ each
$74.50 / box (10 units x $7.45)
In Stock! Ships in 24-48 Hours
(1 Available)


Size: 1/2"
Connection Type: Sweat x Female
Product Type: Dielectric Union
Material: Brass
Features: Lead Free
Thread Type: Female
Max Pressure (PSI): 250 psi
Pressure Rating: 180°F @ 250 psi

Description for Watts 0009864

Series LF3001A Lead Free Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to solder connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3001A is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. Maximum Pressure: 250psi.

1/2" LF3001A CxF Dielectric Union, Lead Free
