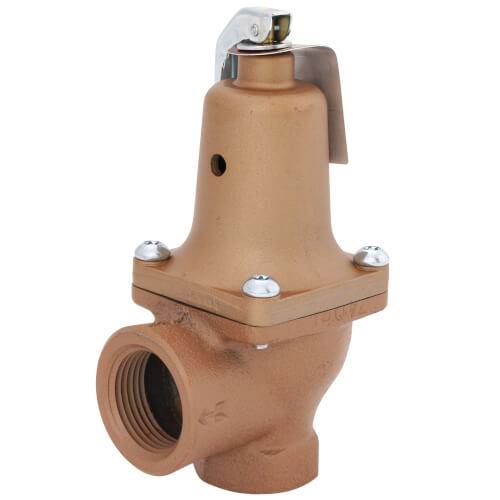

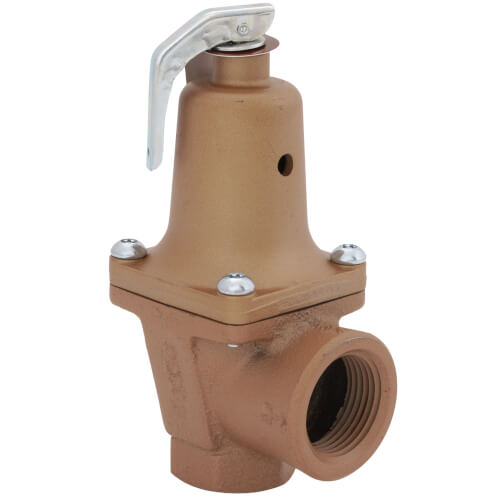

3/4" x 1" Series 740 Boiler Pressure Relief Valve (75 psi) Zoom

3/4" x 1" Series 740 Boiler Pressure Relief Valve (75 psi)

SKU:0382456

Brand: Watts

Watts
Qty Price
$61.75
/ each
In Stock! Ships in 24-48 Hours
(1 Available)

Specs

Pressure Set Point: 75 psi
Capacity: 1886000 BTU/hr
Capacity (BTU): 1886000
Inlet Size: 3/4"
Outlet Size: 1"
Material: Iron
Application: Heating
Thread Type: Female
Temperature Range (F): 250°F Max
Connection Type: Threaded
ASME: Yes

Description for Watts 0382456

This Series 740 Boiler Pressure Relief Valve is used in hot water space heating boiler applications to protect against excessive pressure on all types of hot water space heating boiler equipment. It consists of an iron body construction with expanded outlet drain connections for hot water space heating boilers, non-metallic disc-to-metal seating, stainless steel spring, and test lever. It offers large discharge capacity, resists corrosive water conditions, resists sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief and shall not be used as an operating control.
Features:

  • Seat located above drain; water can't be trapped and sediment can't foul seat.
  • Non-mechanical seat-to-disc alignment will not stick or freeze.
  • Water seal of high temperature resisting material isolates spring working parts from water during relief
Specifications:
  • Pressure: 30 psi
  • Maximum Temperature: 250 F (121 C)

3/4" x 1" Series 740 Boiler Pressure Relief Valve (75 psi)
