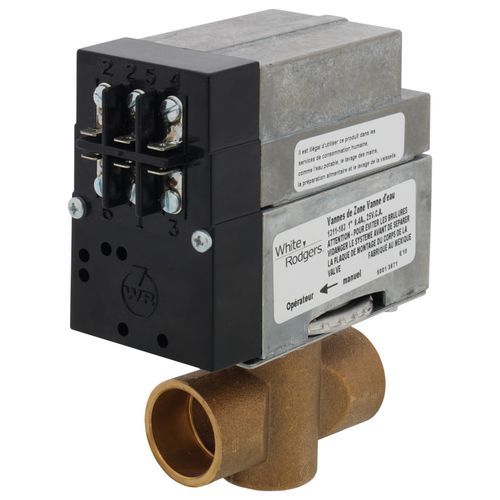

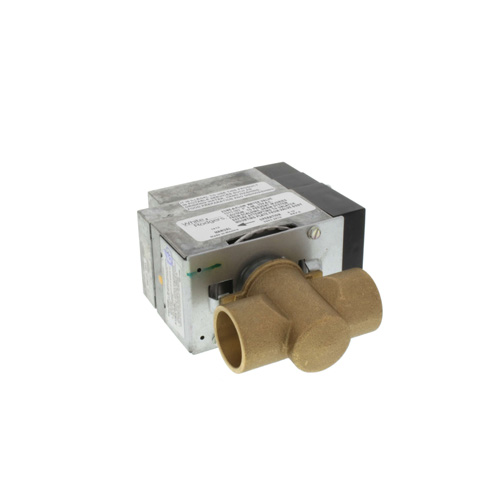

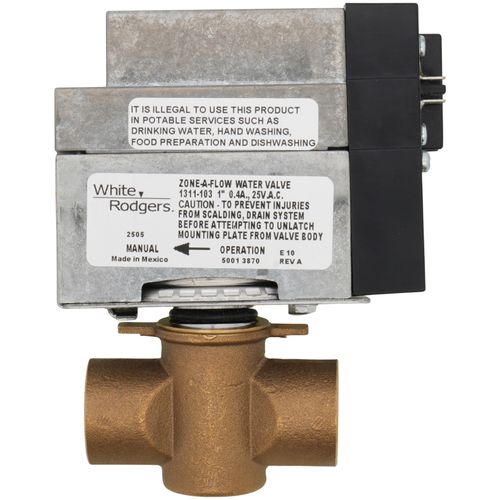

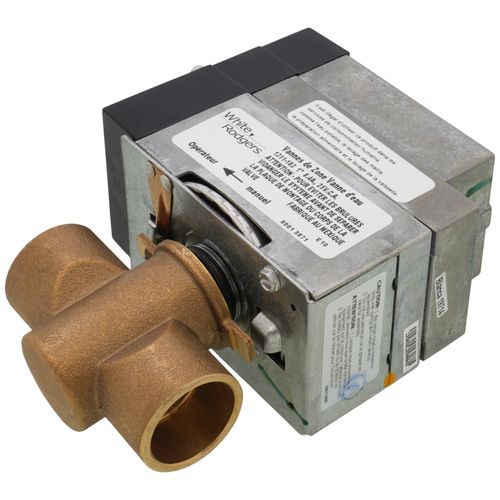

1" Sweat Zone Valve (Three Wire) Zoom

1" Sweat Zone Valve (Three Wire)

SKU:1311-103

Brand: White Rodgers

White Rodgers
Qty Price
$109.95
/ each
$317.85 / box (3 units x $105.95)
In Stock! Ships in 24-48 Hours
(13 Available)

Specs

Application: Zoning
Size: 1"
Connection Type: Sweat
Voltage:
?
24v
Flow Capacity (Cv): 37
Position: Normally Closed
Wiring: 3 Wire
Body Pattern: 3-Way
Hertz: 50
60
Max Temp (F): 240°F
Max Pressure (PSI): 50
Amperage:
?
0.4
Time Cycle: Open 45 Seconds
Close 45 Seconds
Max Pressure Differential (PSI): 15 psi
Friction Loss: 3-1/2 Ft of Tubing
Depth (Inches): 2-5/8"
Height: 5-7/8"
Material: Stainless Steel
Width: 4-5/8"

Description for White Rodgers 1311-103

1" Zone Valve (Three Wire)

Features

  • 15 PSI Maximum Differential Across Valve
  • 240 Degrees F Maximum Water Temperature
  • 24 VAC
  • 60Hz
  • 50 PSI Maximum System Pressure

1" Sweat Zone Valve (Three Wire)
