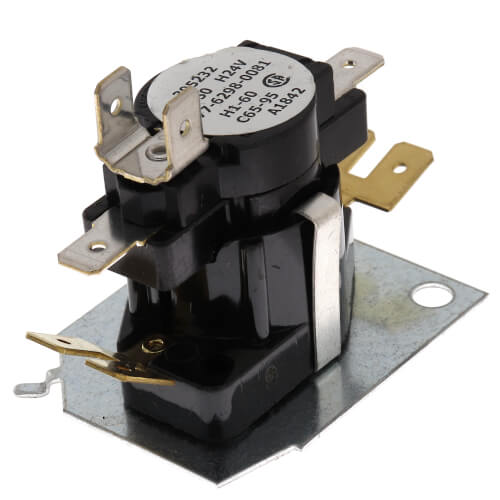

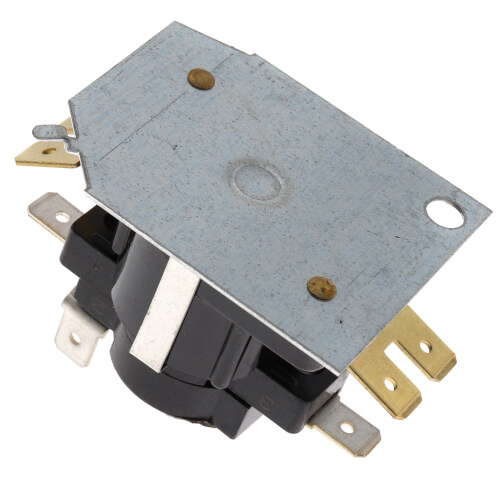

Description
Direct Replacement for Most Fan/Heat Sequencing Functions. Terminal Markings are Equivalent to Competitive Types.

Features
  • Used in heat pump air handler applications
  • Provides a delay off to the blower motor in cooling mode
  • Single pole double throw
Read more
Manuals (2)
Specs
Application:
Heat Pump
Voltage:
120v
240v
Switches:
1
Timings:
1
Timings On:
1-60
Timings Off:
75-95
Ambient Conditions:
-50 to 165ºF
A.C. Resistive:
3000W
6000W
25A
Electrical Ratings (AFL):
7 A @ 240 VAC
14.0 A @ 120 Vac
Electrical Ratings (ALR):
72 A @ 120 VAC
42 A @ 240 VAC
Pilot Duty Rating:
125 VA @ 240 Vac
125 VA @ 120 Vac
Type:
SPDT
×
