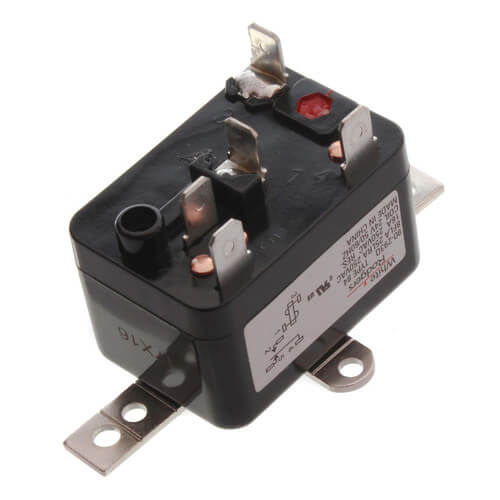

Fan Relay, Type 84, 24 VAC Coil, SPDT. Coil Data: 90 Ohms DC Resistance, 125 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush) Zoom

Fan Relay, Type 84, 24 VAC Coil, SPDT. Coil Data: 90 Ohms DC Resistance, 125 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush)

SKU:90-293Q

Brand: White Rodgers

White Rodgers
Qty Price
$6.19
/ each
$59.50 / box (10 units x $5.95)
In Stock! Ships in 24-48 Hours
(57 Available)
1

Specs

Application: Heating
Temperature Range (F): -40° to 150°F
Type: SPDT
Voltage:
?
24v
Hertz: 60
50
DC Resistance: 90 ohms
Weight: 2.5 oz
mA: 125
Nominal VA: 3
Inrush: 4
Duty: Continuous
Electric Connection: 1/4" Quick-Connect Terminals

Description for White Rodgers 90-293Q

Used for Switching Single or Two Speed Fan Motors, Solenoids, Relays, Resistive Loads and General Purpose Switching

Features

  • Compact, totally enclosed design
  • For heating and cooling applications and general switching
  • Quiet, reliable and economical

Fan Relay, Type 84, 24 VAC Coil, SPDT. Coil Data: 90 Ohms DC Resistance, 125 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush)
