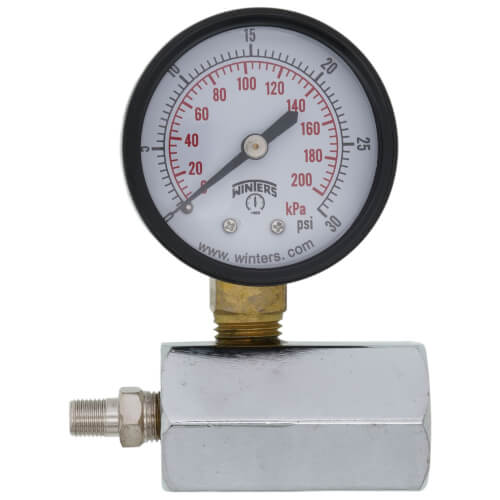

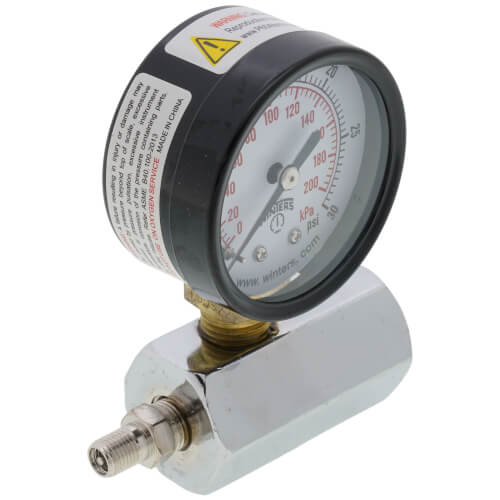

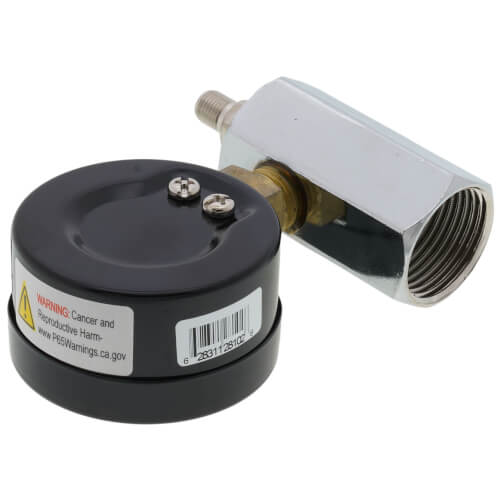

2" PET Economy Gas Test Pressure Gauge (0-30 PSI) Zoom

2" PET Economy Gas Test Pressure Gauge (0-30 PSI)

SKU:PETG202

Brand: Winters Instruments

Winters Instruments
Qty Price
$7.55
/ each
In Stock! Ships in 24-48 Hours
(25 Available)
0

Resources

Specs

Product Type: Pressure Gauge
Dial Size: 2"
Connection Type: 3/4" NPT
Measures: Pressure
Application: Pressure
Gas
PSI Range: 0-30
Max Pressure (PSI): 30
Material: Polycarbonate
Steel
Accuracy: ± 3-2-3%
Ambient Operating Temperature: -40°F to 150°F

Description for Winters Instruments PETG202

Description & Features:

  • Economical pressure gauge and valve body assembly used for pressure testing
  • Bleed port and plated housing on the gas test assembly
  • Black steel case
  • Dual scale (PSI/kPa)
  • ±3-2-3% accuracy
  • CRN registered
  • 5 year warranty


Applications:
  • Residential & commercial pressure testing of natural gas, air and water lines


Specifications
  • Dial - white aluminum with black and red markings
  • Case - Steel painted black
  • Lens - Polycarbonate
  • Ring - Steel, painted black
  • Bourdon Tube - Phosphor bronze
  • Movement - Brass
  • Pointer - Aluminum, black
  • Welding #50 tin solder
  • Ambient/Process Temperature - -40°F to 150 °F (-40°C to 65°C)
  • Gas Test - 40°F to 150 °F (-40°C to 65°C)
  • Working Pressure - Maximum 75% of full scale value
  • Accuracy - ±3-2-3% ANSI/ASME Grade B
  • Enclosure Rating - IP52

    Note: Do not use this item for any installation or repair of potable water applications.

    This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking).

    This item is for non-potable (non-human consumption) water applications only.
