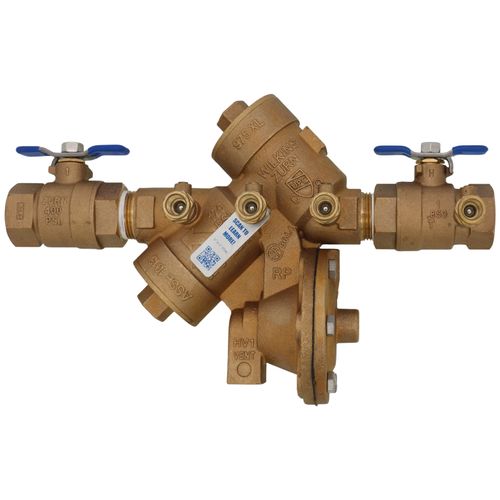

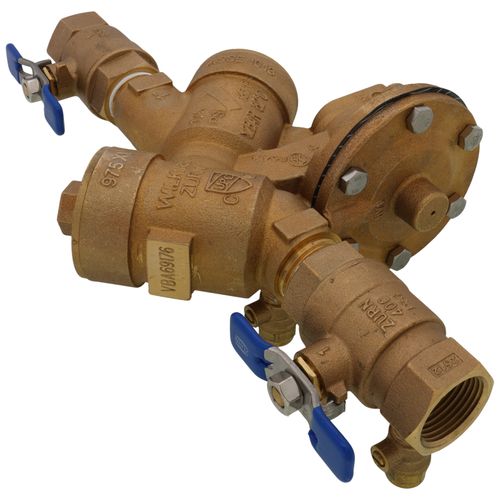

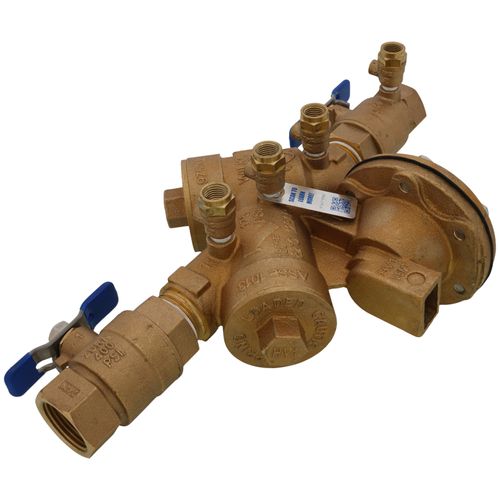

1" Wilkins 975XL Reduced Pressure Principle Assembly Zoom

1" Wilkins 975XL Reduced Pressure Principle Assembly

SKU:1-975XL

Brand: Zurn

Zurn
1-975XL has been discontinued.
Direct Replacement:
SKU: 1-975XL2
Brand: Zurn

Do not use this item for any installation or repair of potable water applications. This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.

0

Resources

Specs

Size: 1"
Hydrostatic Test Pressure: 350 PSI
Weight (lbs): 14 lbs

Description for Zurn 1-975XL

Application

This reduced pressure principle assembly is designed for installation on potable water lines to protect against both back-siphonage and back-pressure of contaminated water into the potable water supply. Assembly shall provide protection where a potential health hazard exists

Standards Compliance

  • ASSE® Listed 1013
  • IAPMO® Listed
  • UL® Classified (less shut-off valves or with OS&Y valves)
  • C-UL® Classified
  • CSA® Certified
  • AWWA Compliant C511
  • Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
  • NYC MEA 425-89-M VOL 3

Materials
  • Main valve body: Cast Bronze ASTM B 584
  • Access covers: Cast Bronze ASTM B 584
  • Fasteners: Stainless Steel, 300 Series
  • Elastomers: Silicone (FDA Approved), Buna Nitrile (FDA Approved)
  • Polymers: Noryl, NSF Listed
  • Springs: Stainless steel, 300 series

1" Wilkins 975XL Reduced Pressure Principle Assembly

REVIEW SNAPSHOT®

by PowerReviews
Zurn3/4"" Wilkins 975XL2 Reduced Pressure Principle Assembly (Lead Free)

4.7

(based on 18 reviews)

Ratings Distribution

  • 5 Stars



    (14)

  • 4 Stars



    (3)

  • 3 Stars



    (1)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Most Liked Positive Review



Excellent Part, Excellent Price

Was replacing an old backflow, used this one, and went together flawlessly. The best part was the price from PexSupply as it was the best value on the internet, as well as all...Read complete review

Was replacing an old backflow, used this one, and went together flawlessly. The best part was the price from PexSupply as it was the best value on the internet, as well as all of the other parts I ordered.

VS

Most Liked Negative Review



expected to have it work right

My plumber had to reseat one of the check valves to get it to operate initially. Then 2 days later, I had to reseat the other check valve to keep it from spurting out...Read complete review

My plumber had to reseat one of the check valves to get it to operate initially. Then 2 days later, I had to reseat the other check valve to keep it from spurting out water. So far it is ok, but I was expecting it to work flawlessly out of the box, not needing adjustments.
Shipping and timely delivery was well handled.

Reviewed by 18 customers

Sort by

Displaying reviews 1-10

Back to top

Previous | Next »


5.0

I'd purchase again

By Joe

from Naples, Fl.

Verified Buyer

Comments about 3/4" Wilkins 975XL Reduced Pressure Principle Assembly:

Required on potable water supply when installing reuse water for irrigation, city regulation.
Appears to be well made.


4.0

WORKING GREAT

By HAMMERING HANK

from DURHAM NC

Verified Buyer

Comments about 1" Wilkins 975XL Reduced Pressure Principle Assembly:

HAD TO DO SOME RESEALING, BUT NOW WORKS GREAT.


5.0

Good product

By Diana

from Orlando, Fl

Verified Buyer

Comments about 1" Wilkins 975XL Reduced Pressure Principle Assembly:

Installed by certified technician. He said it was the best I could of purchased.


5.0

Awesome

By Jeff

from Carbondale,IL

Verified Buyer

Comments about 1" Wilkins 975XL Reduced Pressure Principle Assembly:

I ordered and received in timely fashion. I connected it and worked perfectly without needing adjustments.


4.0

Quick shipping

By Apts

from Atlanta, GA

Verified Buyer

Comments about 1" Wilkins 975XL Reduced Pressure Principle Assembly:

For use on an apartment community.


5.0

Best Price at PexSupply.com

By Mike at Cinnabon

from Fox Hills Mall, Culver City, CA

Verified Buyer

Comments about 1/2" Wilkins 975XL Reduced Pressure Principle Assembly:

Pexsupply.com has the best costomer service,the price of the 1/2" Wilkins Pressure Reducer was 50% off. And I got it in a few days. I recommend Pexsupply.


4.0

Sweet and Sour

By Fixologist

from Tennessee

Verified Buyer

Comments about 3/4" Wilkins 975XL Reduced Pressure Principle Assembly:

I have worked with, rebuilt, and repaired these units and they are usually quite good and work well for a long time.

I got one that was bad out of the box. It failed to open the second valve when it was tested.

The people at Pex took very good care of me by sending a return label and a new unit that goes in tomorrow


5.0

Just what I needed

By Thirsty lawn

from Raleigh,NC

Verified Buyer

Comments about 1" Wilkins 975XL Reduced Pressure Principle Assembly:

The Wilkins 975XL reduced pressure principle assembly that I had installed about 5 years ago went bad. I found your web site online with the right product at the right price. I call the irrigation company that installed the first one to replace the new one. I told them the price I paid and they wanted the name of the web site. The one they wanted to sell me was a lot more then I paid. So I thank you and my lawn thanks you.


3.0

expected to have it work right

By zipper

from St Louis, MO

Verified Buyer

Comments about 3/4" Wilkins 975XL Reduced Pressure Principle Assembly:

My plumber had to reseat one of the check valves to get it to operate initially. Then 2 days later, I had to reseat the other check valve to keep it from spurting out water. So far it is ok, but I was expecting it to work flawlessly out of the box, not needing adjustments.
Shipping and timely delivery was well handled.


5.0

Works great. Easy to install.

By Steve

from Smyrna, Tn

Verified Buyer

Comments about 1" Wilkins 975XL Reduced Pressure Principle Assembly:

use on my lawn irrigation system

Displaying reviews 1-10

Back to top

Previous | Next »

Q&A: Ask the Questions, share answers

Do you have questions about this product?

get answers from real customers and in-house experts with AnswerBox.

8 Questions | 11 Answers
Displaying questions 1-8
  • 3/4"" Wilkins 975XL2 Reduced Pressure Principle Assembly (Lead Free)

    Q:

    What is the over all length & width
    Asked on 8/7/2014 by none

    1 answer

    • CUSTOMER CARE

      A:

      The length of the entire unit is 16-1/8". The width is approximately 5-1/8".

      Answered on 8/8/2014 by SupplyHouse Staff from NY
  • 1" Wilkins 975XL Reduced Pressure Principle Assembly

    Q:

    1 inch Wilkens can it be installed in the vertical position
    Asked on 3/13/2014 by Johnny from Cambridge water department

    2 answers

    • VERIFIED BUYER

      A:

      No the 975XL can't be installed vertical. There are only a few RP devices
      that can be installed vertical.
      Final color email logo
      Bugg Vokel
      Sierra Backflow
      PO Box 11181
      Truckee, CA 96162

      Answered on 3/14/2014 by Anonymous
    • CUSTOMER CARE

      A:

      The Model 975XL must be installed in a horizontal position to provide proper operation of the relief valve.

      Answered on 3/14/2014 by PexSupplyStaff from New York
  • 2" Wilkins 975XL Reduced Pressure Principle Assembly

    Q:

    I'm in California. Does this comply with the new lead free rule?
    Asked on 5/3/2012 by Mike from Ca

    2 answers

    • VERIFIED BUYER

      A:

      Not sure if this has to do with the content of lead, but this product
      states on it that it is not for use in California.

      Answered on 5/4/2012 by Another PexSupply Customer
    • CUSTOMER CARE

      A:

      This model is not lead-free. Use 975XL2 models for lead-free installations.

      Answered on 5/4/2012 by PexSupply Staff from NY
  • 3/4" Wilkins 975XL Reduced Pressure Principle Assembly

    Q:

    I have a small drip/discharge from the "vent" area at the bottom of my backflow valve. How does one flush the valve out?
    Asked on 4/28/2011 by Anonymous

    2 answers

    • CUSTOMER CARE

      A:

      Please see the following Installation/Maintenance sheet for instructions on cleaning the valve: http://s3.pexsupply.com/manuals/1272485263360/29536_PROD_FILE.pdf . You can also refer to the troubleshooting steps at the link below to help pin-point where the issue is inside the valve before you start repairing it.

      http://www.zurn.com/operations/wilkins/pages/submenu/Troubleshooting/tsrpp.asp

      Answered on 5/5/2011 by PexSupply Staff from NY
    • VERIFIED BUYER

      A:

      I had same problem. There are 2 big check valves and they can be removed and cleaned. When they are out, turn on the water and let it run for a few seconds to flush the system. Caution, they are held in by big springs under compression. The valve gaskets can also be removed and turned over to have a new surface for sealing. I had to do this on a new unit. There is also a repair kit available with new seals, etc...

      Answered on 5/29/2012 by zipper from St Louis, MO
  • 1" Wilkins 975XL Reduced Pressure Principle Assembly

    Q:

    Can this replace Febco 285Y 1" without modifications on existing plumbing?
    Asked on 4/11/2011 by Niki

    1 answer

    • CUSTOMER CARE

      A:

      According to the manufacturer, the 1-975XL is 13" in length and the Febco 285Y is 12 3/4" in length. Therefore, some field adjustments may be required.

      Answered on 4/12/2011 by PexSupply Staff from NY
  • 2" Wilkins 975XL Reduced Pressure Principle Assembly

    Q:

    Do you have locking kits to prevent unauthorized opening or closing of isolation valves on the 2-975XL?
    Asked on 10/15/2010 by Anonymous

    1 answer

  • 3/4" Wilkins 975XL Reduced Pressure Principle Assembly

    Q:

    If the 975 XL is discharging on a consistent basis would it just need to be rebuilt or would it be another issue with the buildings plumbing.?
    Asked on 10/11/2010 by cal

    1 answer

    • CUSTOMER CARE

      A:

      It is suggested that the unit be flushed out because any sort of sediment lodged into the assembly can cause discharge.

      Answered on 10/19/2010 by PexSupply Staff from NY
  • 3/4" Wilkins 975XL Reduced Pressure Principle Assembly

    Q:

    how would I increase the output pressure on this product?
    Asked on 9/19/2010 by Michael homeowner from Kissimmee, FL

    1 answer

    • CUSTOMER CARE

      A:

      No, the max pressure rating on this part is 175 PSI. There is no way to increase the output pressure.

      Answered on 9/23/2010 by PexSupply Staff from NY
