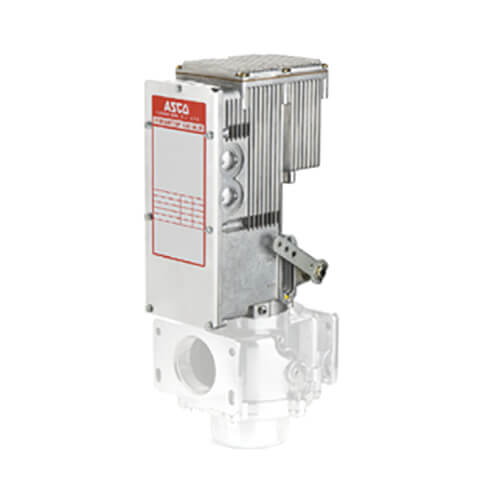

AH2E Hydramotors are push-type, self-contained,
electrohydraulic linear actuators which extend when powered and retract by spring force upon power interruption. AH2E Hydramotors provide a fast spring return shutoff time of one second or less. When the actuator is mounted to a V710 gas valve, position indicators on both sides of the actuator show the open or closed position of the valve. The AH2E Hydramotor/V710 gas valve combination provides main line gas control for a wide range of applications, including boilers, furnaces, ovens and all types of industrial and commercial burners. It is available in either a slow or fast opening construction.
- Power Requirement: 220 VA max.
- Closing Time: One second max.
- Opening Time: Fast Opening: 14 seconds max./
Slow Opening: 26 seconds max.
- Note: Opening time is double between -30°F and -40°F ambient. Opening time increases 20% when operating on 50Hz.
