Spring Return Fail-Safe, On/Off Damper Control Actuator, Direct Coupled - 24-240 VAC w/ Aux Switch
Hover image to zoom

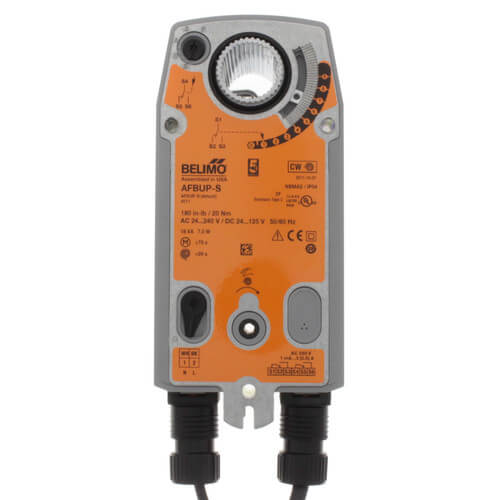

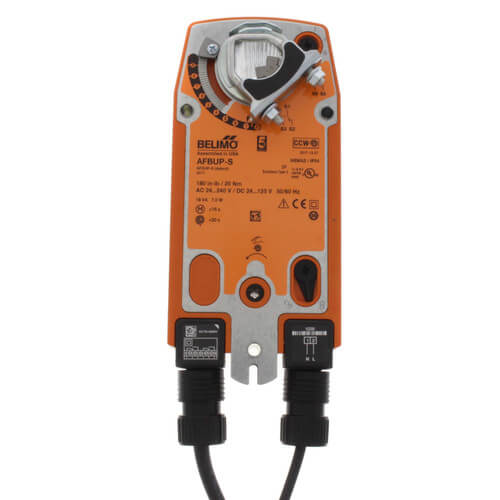

Spring Return Fail-Safe, On/Off Damper Control Actuator, Direct Coupled - 24-240 VAC w/ Aux Switch

Brand:
Belimo
SKU:
AFBUP-S
Rating:
(2)
Q&A:
(0)
Spring Return Fail-Safe, On/Off Damper Control Actuator, Direct Coupled - 24-240 VAC w/ Aux Switch
Hover image to zoom
$450.90 each
In Stock
In Stock
Get 20 Fri, Jun 21
Fast Track Logo
Order by 6PM, receive Friday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Torque icon
180 lb-in Torque
Warranty icon
5 Year Limited Warranty

Description

Application

For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact, or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05°, in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.

Operation

The AFB and AFX series actuators provide true spring return operation for reliable failsafe application and positive close off on air tight dampers. The spring return system provides constant torque to the damper with, and without, power applied to the actuator. The AFB and AFX series provides 95° of rotation and is provided with a graduated position indicator showing 0° to 95°. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. The AFBUP-S and AFXUP-S versions are provided with two built-in auxiliary switches. These SPDT switches provide safety interfacing or signaling, for example, for fan startup. The switching function at the fail-safe position is fixed at +10°, the other switch function is adjustable between +10° to +90°. The AFBUP, AFBUP-S, AFXUP and AFXUP-S actuator is shipped at +5° (5° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off.

Specs

Fail Safe Mode:

Spring Return

Actuator Type:

Two Position

Power Supply:

24 to 240 VAC

Torque:

180 lb-in

Running Time:

<75 Seconds (motor)

20 sec @ -4°F to 122°F (spring)

< 60 sec @ -22°F (spring)

Ambient Temperature:

-22°F to +122°F

Control Input Values:

On/Off

Auxiliary Switch:

2 SPDT

Manual Override:

Yes

Direction of Rotation:

Reversible w/ cw/ccw mounting

Warranty:

5 Year Limited
