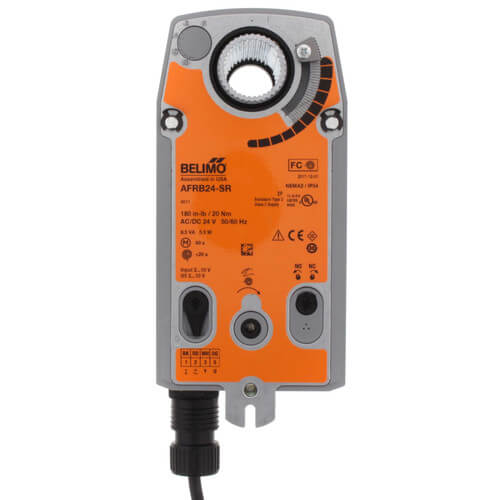

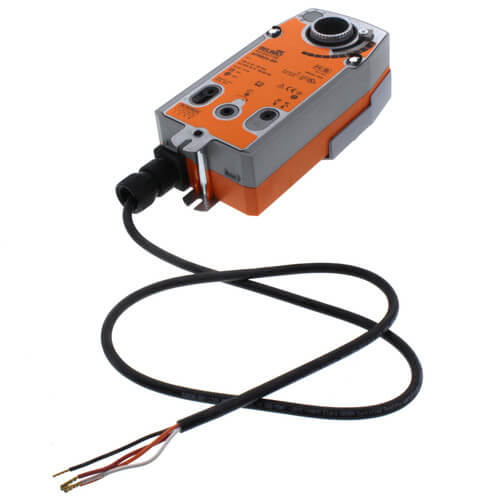

Spring Return Fail-Safe, Valve Actuator, 24 VAC/DC W/ Aux Switch, Modulating
Hover image to zoom

Spring Return Fail-Safe, Valve Actuator, 24 VAC/DC W/ Aux Switch, Modulating

Brand:
Belimo
SKU:
AFRB24-SR
Rating:
(1)
Q&A:
(0)
Spring Return Fail-Safe, Valve Actuator, 24 VAC/DC W/ Aux Switch, Modulating
Hover image to zoom
$458.10 each
In Stock
In Stock
Get 20 Thu, May 23
More Available
Fast Track Logo
Order by 6PM, receive Thursday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Torque icon
180 lb-in Torque
Warranty icon
5 Year Warranty

Description

AFR series actuators are used with B6 Series, Two Way Flanged Ball Valves. Application: This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.

Specs

Actuator Type:

Two Position

Fail Safe Mode:

Spring Return

Control Signal:

2-10 VDC

Power Supply:

24 VAC/DC

Torque:

180 lb-in

Running Time:

20 sec @ -4°F to 122°F (spring)

< 75 Seconds (motor)

< 60 sec @ -22°F (spring)

Power Consumption:

2.5W (holding)

5W (running)

VA Rating:

7.5

Auxiliary Switch:

2 SPDT

Ambient Temperature:

-22°F to +122°F

Switch Operation:

Modulating

Manual Override:

Yes

Direction of Rotation:

Reversible w/ cw/ccw mounting

Warranty:

5 Year
