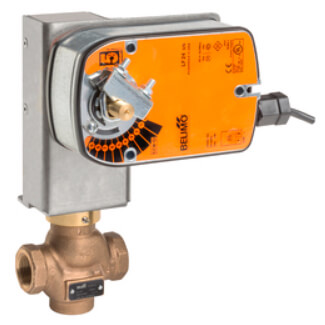

1/2" FNPT 2-Way Bronze Globe Valve w/ Spring Return Actuator, 24VAC/DC (0.4 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$828.24 each
Out of Stock
Get it Mon, Apr 17 - Wed, Apr 26
MANUALS (2)
Lift Gate
–
This product weighs 10 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Stainless Steel
1/2"
0.4 Cv
5 Year Warranty
Description
–
Globe Valve (GV), 1/2", 2-way, ANSI Class 250, Cv 0.4
Valve Actuator, Spring return, AC/DC 24 V, On/Off, Floating point
Actuator fitted
Valve Specifications:
Actuator Specifications:
Valve Specifications:
- Angle of Rotation: 90
- ANSI Class: 250
- Close Off Pressure: 160 PSI
- Controllable Flow Range: Stem Up- Open A-AB
- CV: 0.4
- End Fitting: Internal Thread
- Fluid: Chilled or hot water, up to 60% glycol
- Pattern: 2-way
- Pressure Independent: NO
- Valve Size: 0.5"
Actuator Specifications:
- Type: Spring Return
- Control Type: Floating/3-point
- Degree of Protection: IP54, NEMA 2
- Electrical Connection: Cable
- Power Consumption (Holding): 1 W
- Power Consumption (Running): 2.5 W
- Running Time (Fail-safe): 150s constant, independent of load
- Voltage AC/DC: AC/DC 24V
Specs
–
| Material: | Stainless Steel |
|---|---|
| Type: | 2 Way NPT |
| Size: | 1/2" |
| Max Inlet Water: | 150 psi @ 250°F |
| Flow Capacity (Cv): | 0.4 |
| Warranty: | 5 Year |
