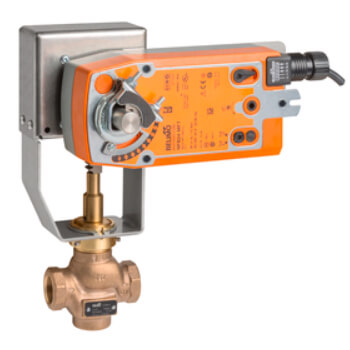

2" FNPT 2-Way Bronze Globe Valve w/ Spring Return Actuator, 24VAC/DC (40 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,726.77 each
Backorder
Get it Mon, May 1 - Thu, Jun 1
MANUALS (2)
Lift Gate
–
This product weighs 18.76 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Bronze
1/2"
40 Cv
5 Year Warranty
Description
–
Globe Valve (GV), 2", 2-way, ANSI Class 250, Cv 40
Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, modulating
Actuator fitted
Valve Specifications:
Actuator Specifications:
Valve Specifications:
- Valve Size: 2"
- Fluid: Chilled or hot water, up to 60% glycol, steam
- Body Pressure Rating: ANSI Class 250, up to 400 psi below 150F
- Flow characteristic: Modified equal percentage
- Rangeability Sv: 100:1
- Cv: 40
- ANSI Class: 250
- Maximum Inlet Pressure (Steam): 100 psi [690 kPa]
- Valve Body: Bronze
- Pipe Connection: NPT Female Ends
- Flow Pattern: 2-Way
Actuator Specifications:
- Nominal Voltage: AC/DC 24 V
- Nominal Voltage Frequency: 50/60 Hz
- Power Consumption in Operation: 3.5 W
- Power Consumption in Rest Position: 2.5 W
- Transformer Sizing: 6 VA (class 2 power source)
- Electrical Connection: 18 GA appliance cable, 3 ft [1 m] with 1/2" conduit connector
- Overload Protection: Electronic throughout 0...95 degree rotation
- Operating Range: 2...10 V
- Operating Range: note 4...20 mA w/ ZG-R01 (500 ohm, 1/4 W resistor)
- Position feedback: 2...10 V
- Position feedback: Max. 0.5 mA
- Direction of Motion: Motor selectable with switch 0/1
- Direction of Motion Fail-Safe: Reversible with CW/CCW Mounting
- Noise level, motor 50 dB(A)
- Noise level, fail-safe 62 dB(A)
- Position indication Mechanical
Specs
–
| Type: | 2 Way NPT |
|---|---|
| Material: | Bronze |
| Size: | 1/2" |
| Flow Capacity (Cv): | 40 |
| Warranty: | 5 Year |
