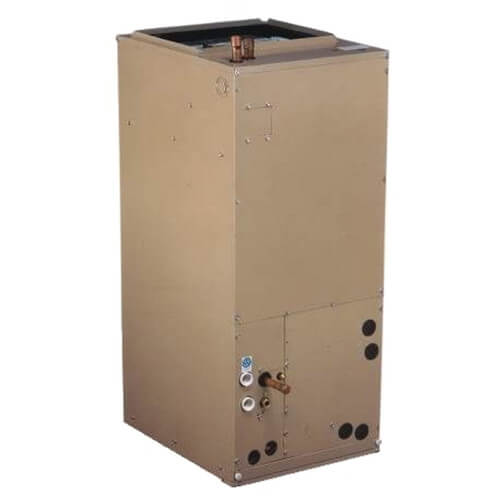

AHG 3.0-4.0 Ton Multi Position-Multi Speed Air Handler (1740 CFM)

Specifications:

• Blower HP: 3/4
• CFM @ 0.20": 1740
• Heating Capacity BTUH: 43,000-67,000
• Filter Size (in.): 20 x 25 x 1
• Blower Dimensions (in.): 11 x 9
• Shipping Weight: 199

Blower Time Delay (30-45 Seconds)
Allows the coil to warm before the blower is energized to prevent cold air release

Line Voltage Terminal Block and Low Voltage Terminal Strip
Allow fast, simple connections

Non-corrosive Drain Pans
Includes primary and secondary drains for either left or right hand connections

Slide-Out Blower Assembly
Makes service and maintenance fast

Factory Installed Air Filter
Uses industry standard sizes

Freeze Protection for Both Heating and Cooling
Protects the entire system year ‘round

3/4" Water Connections
Assures proper installation hook-up

Multi-Position—Vertical or Horizontal: left or right

For Boiler Loop Application


CABINET FEATURES

• Cabinet is galvanized steel for maximum corrosion protection; front and top are painted steel
• Interlocking panels eliminate air leakage
• Cabinet is lined with 1" foil-faced insulation

EVAPORATOR COIL

• Aluminum fin/copper tube, TXV for R-410A included
• Primary and secondary drains
• Dual drain pans for multi-position

HYDRONIC COIL

• Freeze protection switch included
• Aluminum fin/copper tube construction
• Manual air vent and drain valves
• 3/4" sweat water connections

ELECTRIC SUPPLY

• 115V, 60 Hz system, 24 volt control circuit
• Low voltage terminal strip
• High voltage supply at top of cabinet
• Post-purge timer for cooling
