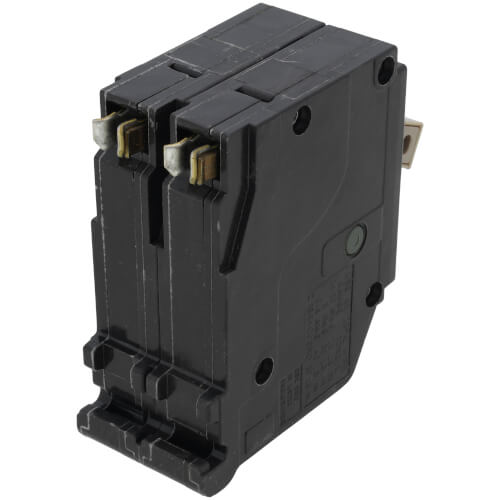

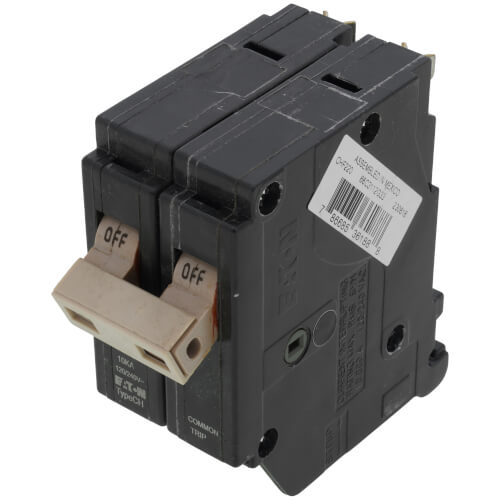

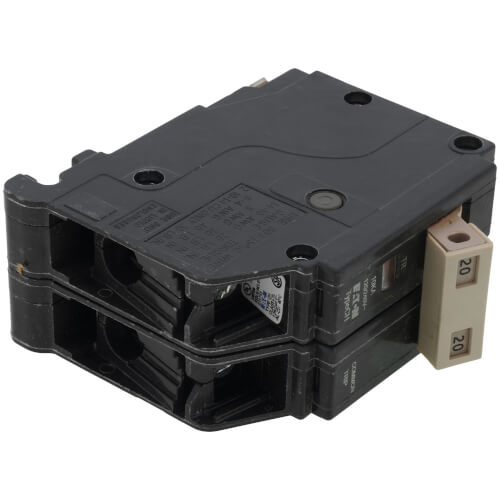

2-Pole CH Thermal Magnetic Circuit Breaker (20A, 120/240V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$51.15 each
In Stock
Get 1 Thu, May 22
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
20 Amps
120/240V
Description
–
Eaton CH thermal magnetic circuit breaker
HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces.
Product Features
HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces.
Product Features
- Type: Type CH 3/4-Inch standard circuit breaker
- Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
- Circuit Breaker Type: CH
- Used With: Type CH Loadcenters
- Voltage Rating: 120/240 V
- Amperage Rating: 20A
- Number of Poles: Two-Pole
- Interrupt Rating: 10 kAIC
- Compliance: HACR Rated
- Certifications: UL 489
Specs
–
| Product Type: | Circuit Breaker |
|---|---|
| Amperage: | 20 |
| Voltage: | 120/240V |
| Poles: | 2 |
