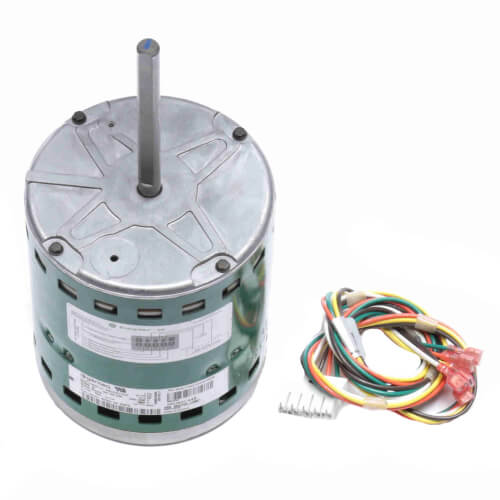

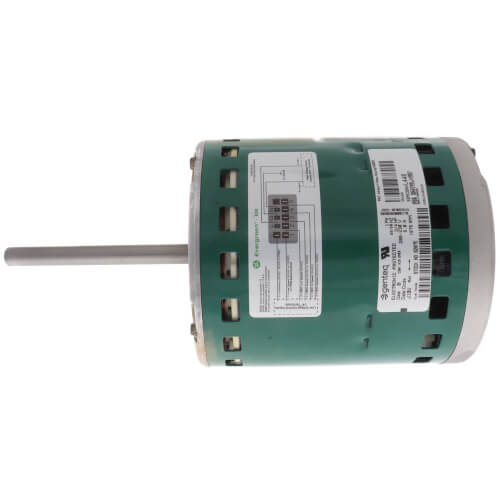

Evergreen EM Replacement Blower Motor, 3/4 HP (208-230V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$343.17 each
In Stock
Get 18 Tue, Apr 4
More Available
Order by 4PM, receive Tuesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230v, 230v, 208v
1075 RPM
Reversible
3/4 HP
Round
6 Amps
Description
–
Benefits:
Specifications:
- Standard ECM Replacement (Does not replace premium ECM constant airflow products such as Eon, 3.0, 2.3, and 2.5)
- Maintains ECM-level Efficiency up to 80%
- Soft Start and Off Ramp for quiet operation
- Alternate use for Commercial Building Series VAV Box and Packaged Heat Pump Retrofit/Upgrade Motor for a PSC system (Refer to Evergreeen EM Instruction Manual)
- Encapsulated Electronics
- 4kV Surge Protection
- Electronic Overload Protection
Specifications:
- Multi-speed, constant torque, brushless DC motor
- Available in 115V or 208-230VAC single-phase input, 50/60Hz
- Designed to replace direct-drive blower motors in residential and light commercial indoor furnaces, air handlers, and package systems that were designed with a standard ECM motor, such as an X13 or equivalent competitor model.
- Available in 1/3, 1/2, 3/4 and 1HP ratings
- Automatically determines motor direction using Genteq’s Rotation Sensing Technology.
- 5 discrete speeds using 24VAC (3 using 18VDC) Low voltage signal harness provided with the motor. Operating speed range of 600-1200 rpm
- NEMA 48-frame (5.6 inch diameter) Belly Band Mount with 5-inch long 1/2" diameter shaft.
- UL and CSA recognized component.
Specs
–
| Horse Power: | 3/4 |
|---|---|
| Voltage: | 208/230v 230v 208v |
| Type: | ECM |
| Phase: | 1 |
| Rotation: | Reversible |
| Duty: | Continuous Air Over |
| RPM: | 1075 |
| Mount: | Round |
| Bearings: | Ball |
| Amperage: | 6 |
| Speeds: | 5 |
| Enclosure Type: | Open Air Over |
| Poles: | 12 |
| Insulation Class: | B |
| Overload Protection: | None |
| Frame: | 48 |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Horizontal |
| Approvals: | UL |
