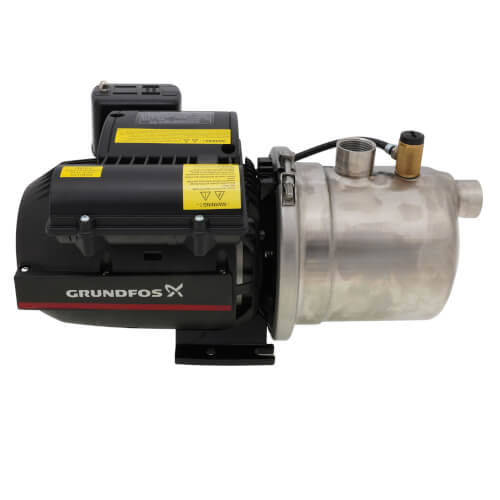

JP 18-07-177 1-Stage Shallow Well Jet Pump, Stainless Steel (115/230V, 3/4 HP)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$565.09 each
In Stock
Get 12 Tue, Mar 28
More Available
Order by today, receive Tuesday
MANUALS (4)
This item replaces: 97855083, 97855081, 96430414
'/%3E%3C/svg%3E){kind=small}
Replacement Parts
View AllFree Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Stainless Steel
115/230v
3/4 HP
18 MAX GPM
87 PSI
Description
–
Grundfos jet pumps (JP) are reliable self-priming, single-stage centrifugal pumps. The pumps have a built-in ejector with guide vanes for optimum self-priming capabilities.
Applications
Built for a long, trouble-free working life, the compact Grundfos JP is perfect for pressure boosting from tanks and wells in residential, agricultural and light commercial applications. The Grundfos JP range is available in models up to 3 hp with a maximum flow of 46 gpm and a maximum 203 feet of head.
Features and Benefits
Applications
Built for a long, trouble-free working life, the compact Grundfos JP is perfect for pressure boosting from tanks and wells in residential, agricultural and light commercial applications. The Grundfos JP range is available in models up to 3 hp with a maximum flow of 46 gpm and a maximum 203 feet of head.
Features and Benefits
- Self-priming after initial fill, suction lift capability up to 26 feet (8 m)
- High quality pressure switch for auto stop/start
- Robust design, with your choice of corrosion-resistant stainless steel construction (models up to 1 hp) or cast iron construction (1-1/2 to 3hp models)
- Thermal overload protection
- Dual voltage (115/230 V) models up to 1 hp
- Built-in ejector complete with a clean-out port to clear blockage
- Expanded range of spare parts kits and replacement motors
Specs
–
| Application: | Shallow Well |
|---|---|
| Voltage: | 115/230v |
| Horse Power: | 3/4 |
| Shutoff Head (ft.): | 177' |
| Max Flow (GPM): | 18 |
| Relative Humidity: | Max. 98 % |
| Max Pressure (PSI): | 87 |
| Hertz: | 60 |
| Phase: | 1 |
| Type: | Jet Pump |
| Frequency: | 60 Hz |
| Material: | Stainless Steel |
