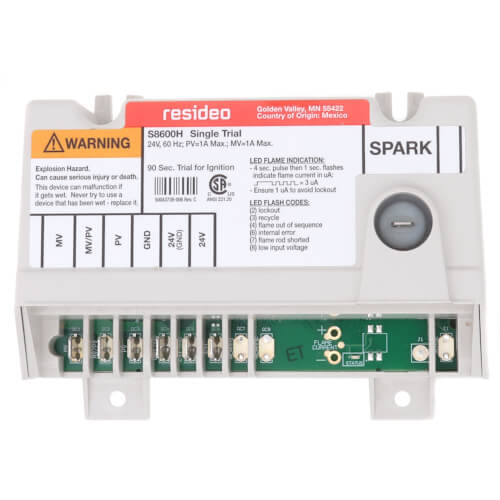

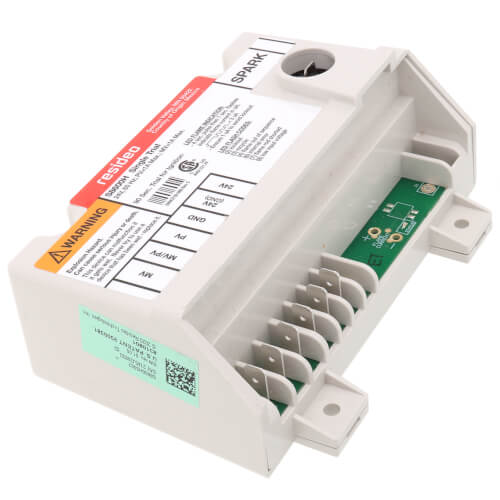

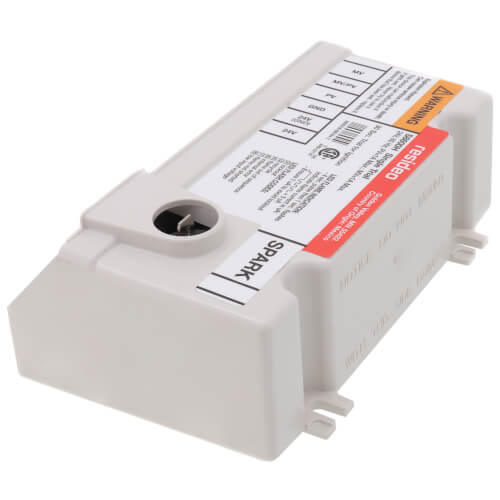

Intermittent Pilot Control for LP & NG (90 Second Trial Time & Lockout)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$147.26 each
In Stock
Get 201 Fri, May 16
Order by 6PM, receive Friday
MANUALS (2)
This item replaces: 412-808-000
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Intermittent Pilot
Description
–
These ignition modules provide ignition sequence, flame monitoring and safety shutoff for intermittent pilot central furnaces and heating appliances.
Features:
Technical Specifications:
Features:
- Provide up to 1.0 A pilot and 1.0 main valve current rating.
- Use a separate igniter and sensor (Q179C with igniter and sensor mounted on one bracket, or Q354 sensor with Q345, Q346, Q348, Q362 or Q381 igniter-sensor recommended.)
- Can be used on natural on LP gas; they provide 100 percent shutoff on ignition failure.
- Lock out on shutoff.
- Manual reset is required.
Technical Specifications:
- Ignition System Type: Intermittent Pilot
- Ignition Sequence: Lockout
- Typical Gas Control: VR8204, VR8304
- Type of Gas: Natural or LP
- Flame Sense: Single Rod
- Ignition Source: Internal high voltage spark generator
- PrePurge: None
- Ignition Trials To Lockout: 1
- Lockout Timing: 90 seconds
- Ignition Trial Time (sec): 90 sec
- Maximum Valve Load @ 24 Vac (Amps): 1A Pilot, 1A Main @ 24Vac
- Typical Ignition Hardware: Q345, Q3451
- Dimensions: 3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Approvals, CSA: Design Certified
- Flame Failure Response Time (sec): 2 seconds maximum
Specs
–
| Ignition Type: | Intermittent Pilot |
|---|
