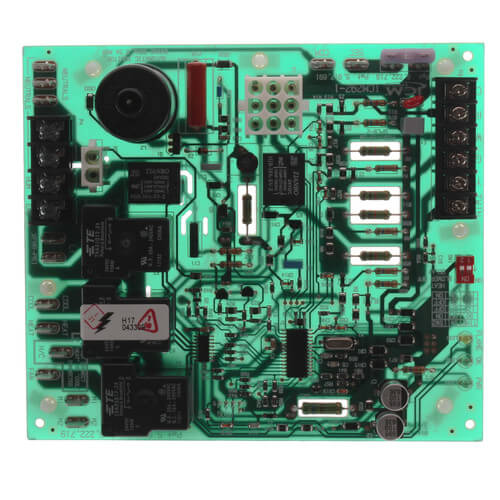

ICM292 Gas Ignition Control Board
ICM292 ICM292 Gas Ignition Control Board
Product 360°
Free Shipping This item ships free
Need replacement parts for this unit?
Specifications:
- Control Voltage: 24 VAC (18-30 VAC), 60Hz
- Line Voltage: 115 VAC, 60Hz
Timing:
- Pre-Purge: 30 seconds
- Trial for Ignition: 7 seconds
- Retries: Two groups of two, 30 second delay within the group, and 3 minute delay between groups
- Lockout: 1-hour
- Post-Purge: 90, 120, 160 and 180 seconds
Inputs:
- Power: 24 VAC and COM
- Thermostat Interface: R,W, Y, and G
- System Switches: Vent pressure and limit switches (main and over-temperature switches in series)
- Flame Sensing
- Heat Blower OFF Delay (miniature slide switch set)
Outputs:
- Spark
- Gas Valve: GV
- Inducer Draft Motor: IDM
- Blower Motor: FAN, COOL and HEAT speeds
- Electric air Cleaner: EAC
- Humidifier Relay: HUM
- Heat/Cool Relay: H/C
LED Indicators:
- Power, Green LED: PWR
- Status, Green LED: OK
- Flame Status, Yellow LED: FLAME
Patents:
- #6,222,719: Ignition Boost
- #5,917,691: Fail Safe Relay Driver
| Product Type: |
Control Board |
| Control Voltage: |
24 VAC @ 60 Hz |
| Line Voltage: |
115 VAC 60Hz |
| Power Consumption: |
0.3A plus gas valve current at 24 VAC |
| Operating Temp Range: |
-40° to 176°F |
| Pre-Purge Time: |
30 Seconds |
| Trial For Ignition: |
7 Seconds |
| Thermostat Terminals: |
R W Y and G |
