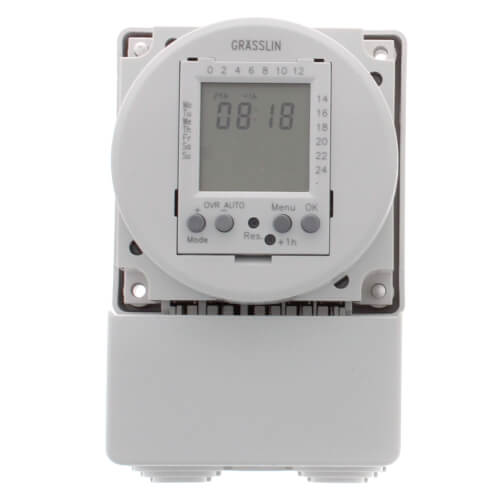

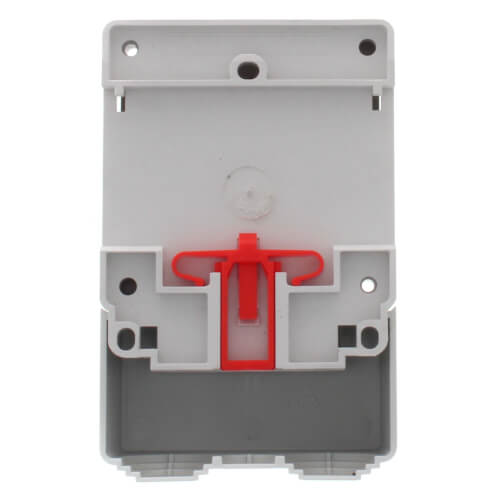

One-Circuit Electronic Time Switch, 16A, SPDT Surface Mounting (24V)

The FM1D20A-24 One-Circuit Electronic Time Switches are compact 24-Hour/7-Day modules with heavy-duty relay contacts for switching low or line voltage loads. The timers are suitable for time-of-day control of pumps, fans, heaters, HVAC control circuits, lighting, machinery, and many other types of commercial, industrial, and agricultural equipment.

Model Overview:

• 24-Hour or 7-Day applications
• 20 setpoint programs
• 3 preset adjustable block programs
• Easy-to-follow menu driven programming
• Manual override with status indication
• Battery backup
• Large LCD

N.O. Contact

• 16A Resistive, 277 VAC
• 1/2 HP, 120 VAC
• 1 HP, 240 VAC
• 12A, Ballast 120 VAC
• 8A, Ballast 240 VAC
• 720 VA, 240 VAC Pilot Duty
• 360 VA, 120 VAC Pilot Duty
• 600W, Tungsten 120 VAC
• 1000W, Tungsten 240 VAC

N.C. Contact

• 16A, 277 VAC Resistive
• 8A, 24 VDC
• 360 VA, 120 VAC Pilot Duty
