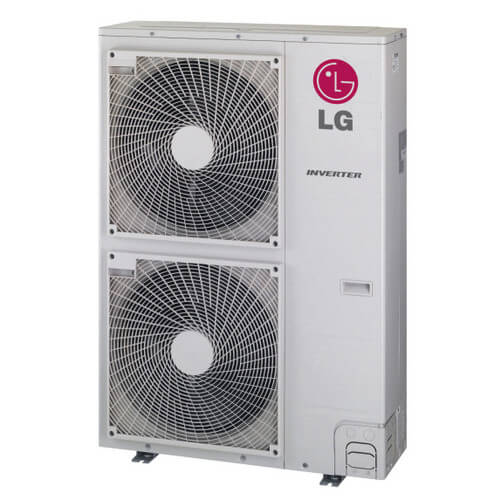

48,000 BTU, R-410A, Multi F MAX Inverter Heat Pump w/ LGRED System - Outdoor Unit

Hover image to zoom

Home

HVAC Supplies

Mini Split Air Conditioners

Multi Zone Mini Splits

48,000 BTU, R-410A, Multi F MAX Inverter Heat Pump w/ LGRED System - Outdoor Unit

Name: 48,000 BTU, R-410A, Multi F MAX Inverter Heat Pump w/ LGRED System - Outdoor Unit
Brand: LG
SKU: LMU480HHV
Price: 4621.54 USD
Availability: OutOfStock

Brand:

SKU:

LMU480HHV

Rating:

(0)

Q&A:

(0)

Hover image to zoom

LMU480HHV has been discontinued

Discontinued March 27, 2025

This product was discontinued by the manufacturer.

MANUALS (6)

Federal Tax Credit Form

Federal Tax Credit Form

Replacement Parts

View All

Product Highlights

–

48000 BTUs

52500 BTUs

3/8"

3/4" SL

208/230V

Description

–

This R410A unit is no longer manufactured as per the AIM Act of 2020. While replacement parts are available for repairs, a new unit will require replacing the entire system to support the new A2L R32 refrigerant.

Please visit our Central Air Packages for system selection or reach out to Customer Care Team Contact Us for assistance.

Rebates:
This product qualifies for a federal tax rebate of up to $2,000. Federal Rebate click for more info

In addition to the federal rebate, you may also be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about local rebate programs that may apply to you. LG Rebate Center

Note: This unit requires the use of either 1 or 2 branch distribution boxes to connect with compatible indoor units. If using 2 Branch distribution boxes, the Y Branch kit PMBL5620 is also required.

Product Features:

R1 Scroll (Variable Speed) Compressor
Auto operation
Auto restart
Self diagnosis
Defrost / Deicing
Low ambient cooling down to 14°F
Soft start
Restart delay (3 minutes)
Factory installed Drain Pan Heater

Performance:

Nominal Cooling Capacity : 48,000 (Btu/h)
Nominal Heating Capacity : 52,000 (Btu/h)

Piping:

Refrigerant Charge (lbs) : 11.46
Liquid Line (OD) : 3/8" (1 Each)
Vapor Line (OD): 3/4" (1 Each)
Max Total Piping² : 475.7 ft
Max ODU to IDU Piping: 229.6 ft
Piping Length (no add'l refrigerant, ft): 180.4
Max Elevation between ODU and IDU: 98.4 ft
Max Elevation between IDU and IDU: 49.2 ft

Unit Data:

Refrigerant Type R410A
Refrigerant Control EEV
Sound Pressure (Cool/Heat) +/-3 dB(A) 54/56
Net Unit Weight (lbs) : 218
Shipping Weight (lbs) : 243
Heat Exchanger Coating GoldFin
Min Number of Indoor Units: 2
Max Number of Indoor Units: 8

Specs

–

Type:	Multi-Split
Product Type:	Outdoor Unit
Cooling Capacity (BTU):	48000
Heating Capacity (BTU):	52500
Application:	Cooling
Number of Zones:	8
Voltage:	208/230V
Hertz:	60
Phase:	1
Refrigerant Type:	R-410A
Liquid Line:	3/8"
Suction Line:	3/4"
Warranty:	7 Year (Compressor)/5 Year (Parts)
Energy Star Rated:	Yes
